Model:

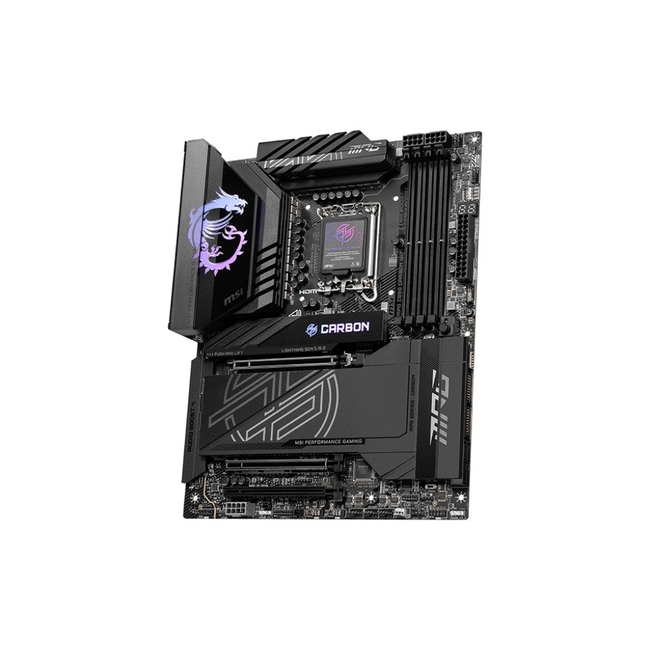

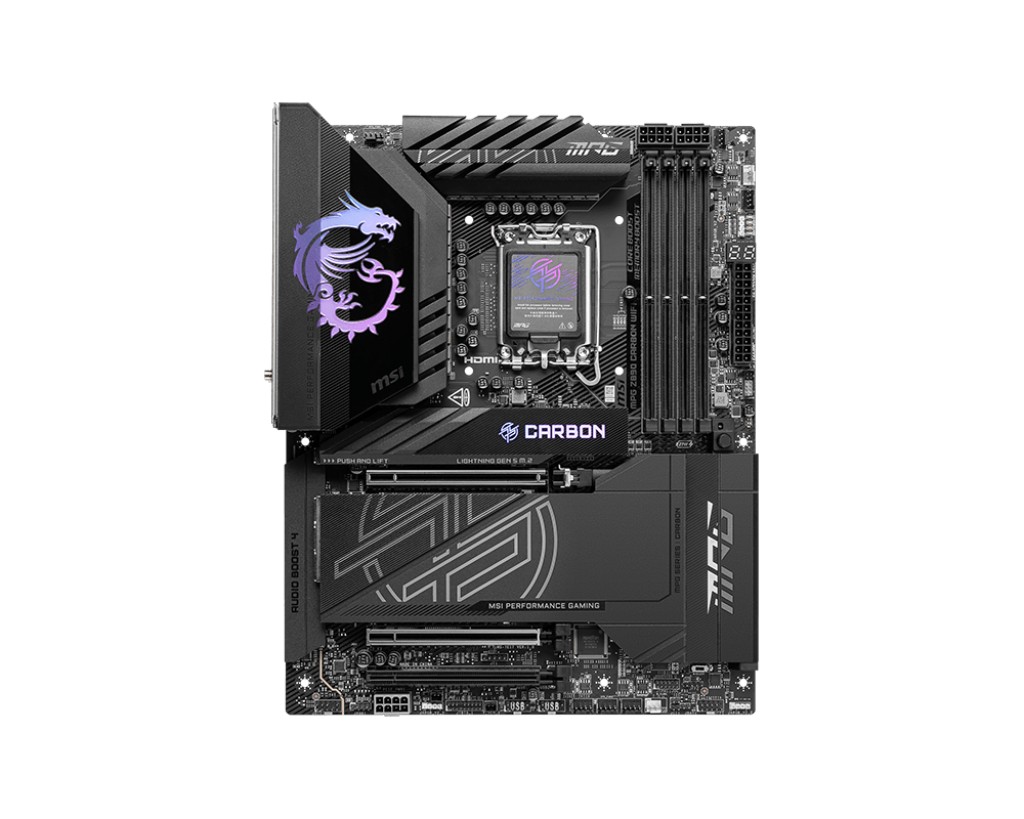

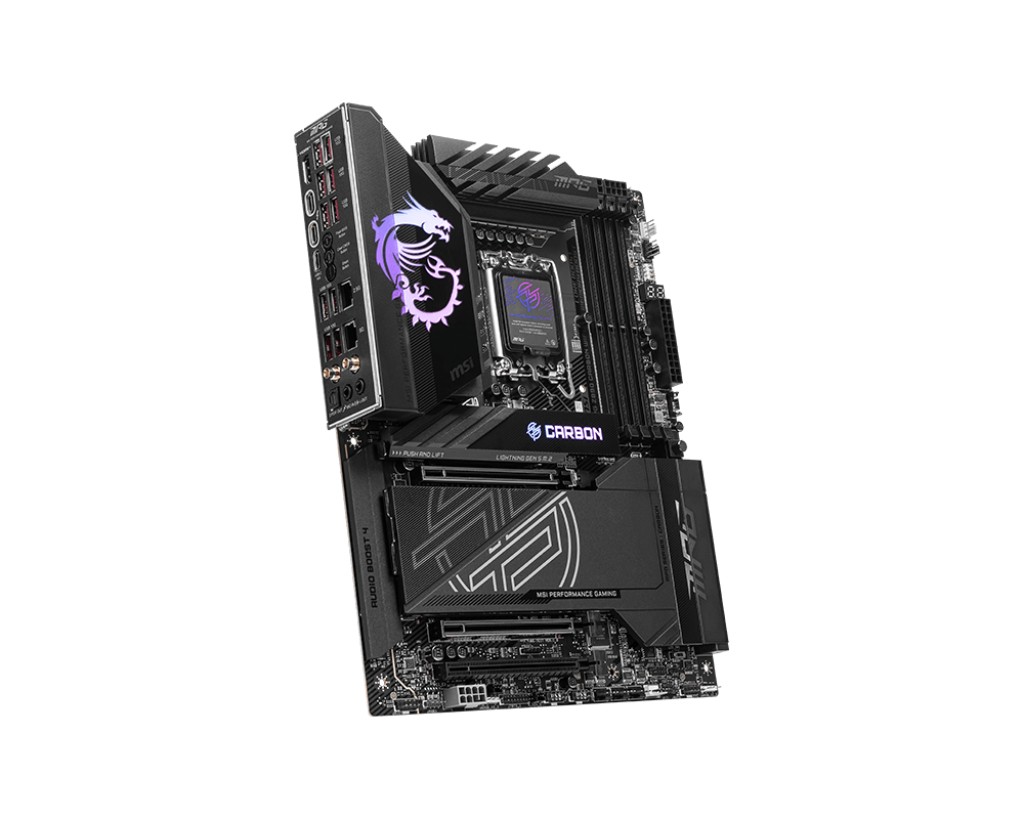

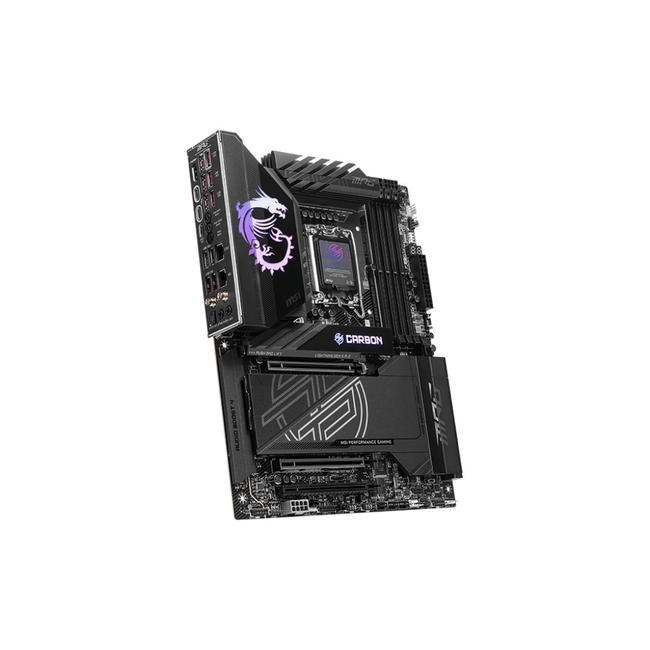

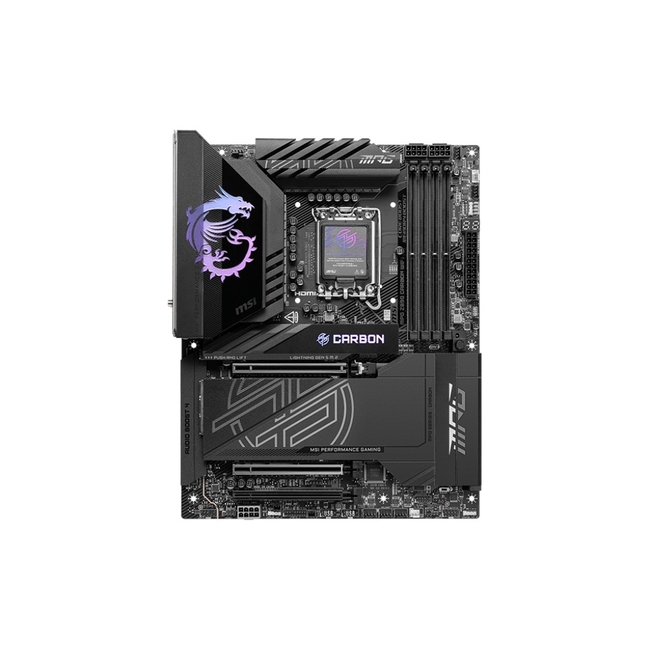

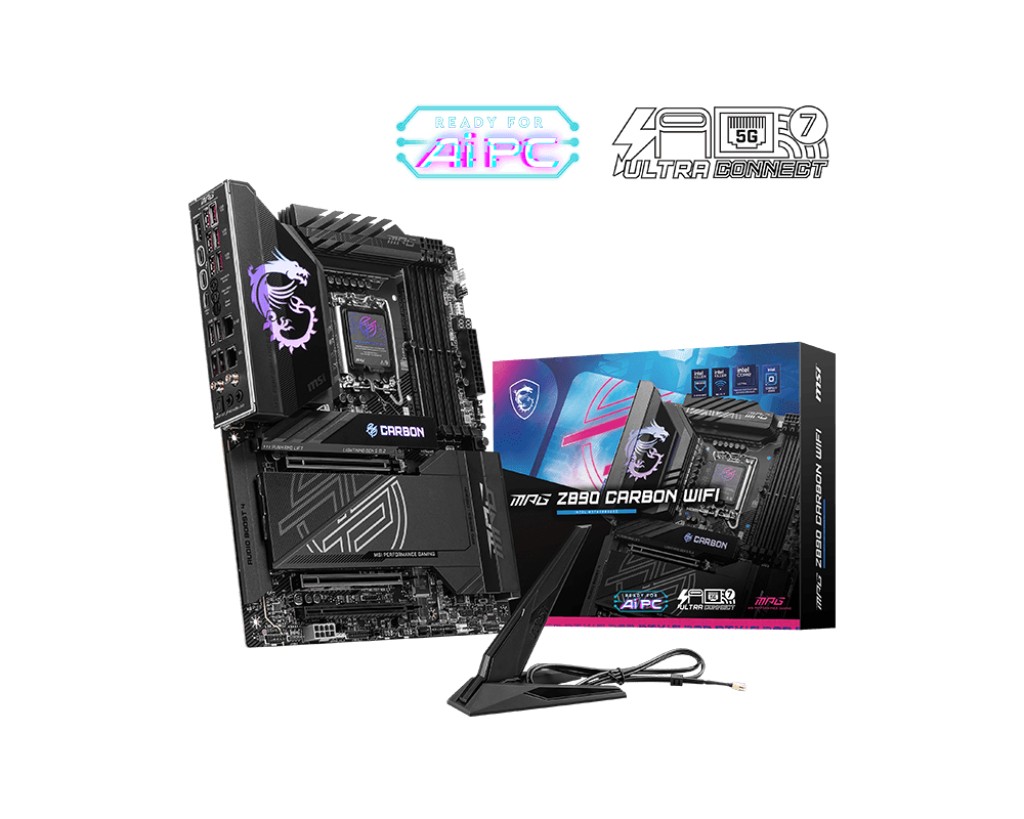

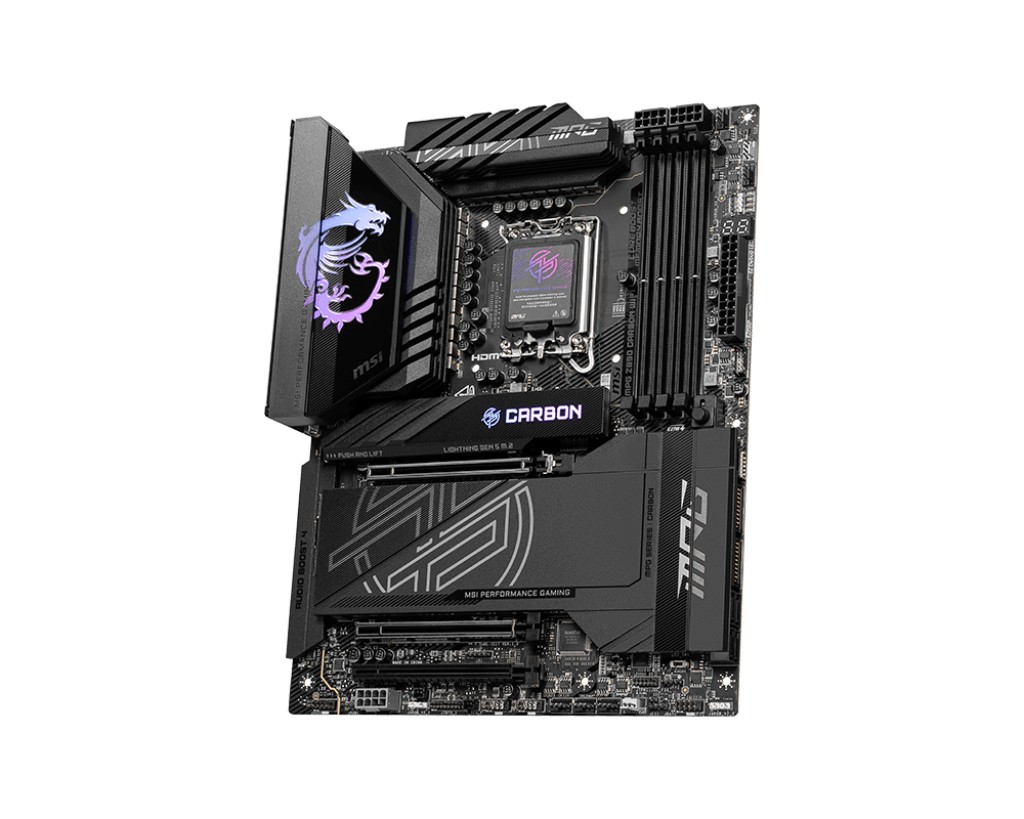

MPG Z890 CARBON WIFI

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: No

Chipset manufacturer: Intel

Chipset type:

 INTEL Z890

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 7200 MHz

Memory bus frequency: 4800 MHz

Memory bus frequency: 6400 MHz

Memory bus frequency: 9200 MHz

Expansion slots: 3 x PCIe x 16

Expansion slots: 1 x PCIe 4.0 x 4

Expansion slots: 1 x PCIe 5.0 x 8

Expansion slots: 1 x PCIe 5.0 x 16

Expansion slots: 5 x M.2

RAID: Yes

Network interface: 1 x 10/100/1000/2500/5000 Mbit/s

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

Network interface: Bluetooth

Network interface: 1 x 10/100/1000/2500 Mbit/s

FireWire (IEEE 1394): No

COM connector / port: No

LPT connector / port: No

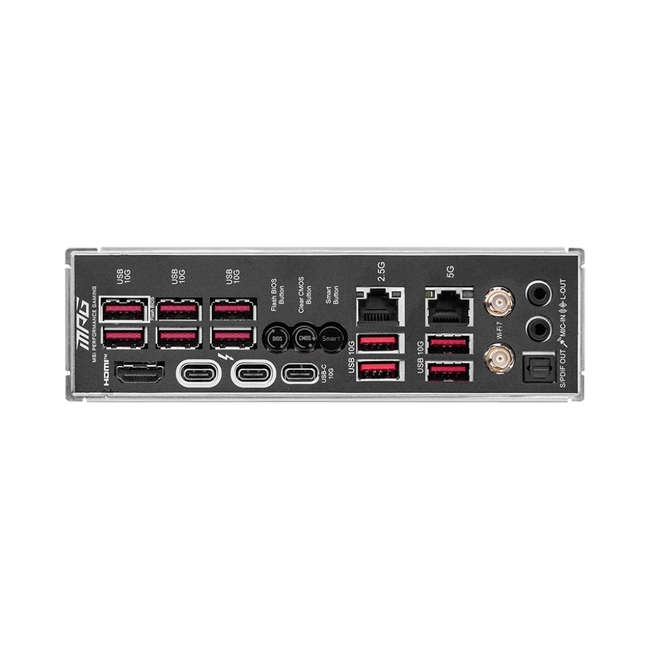

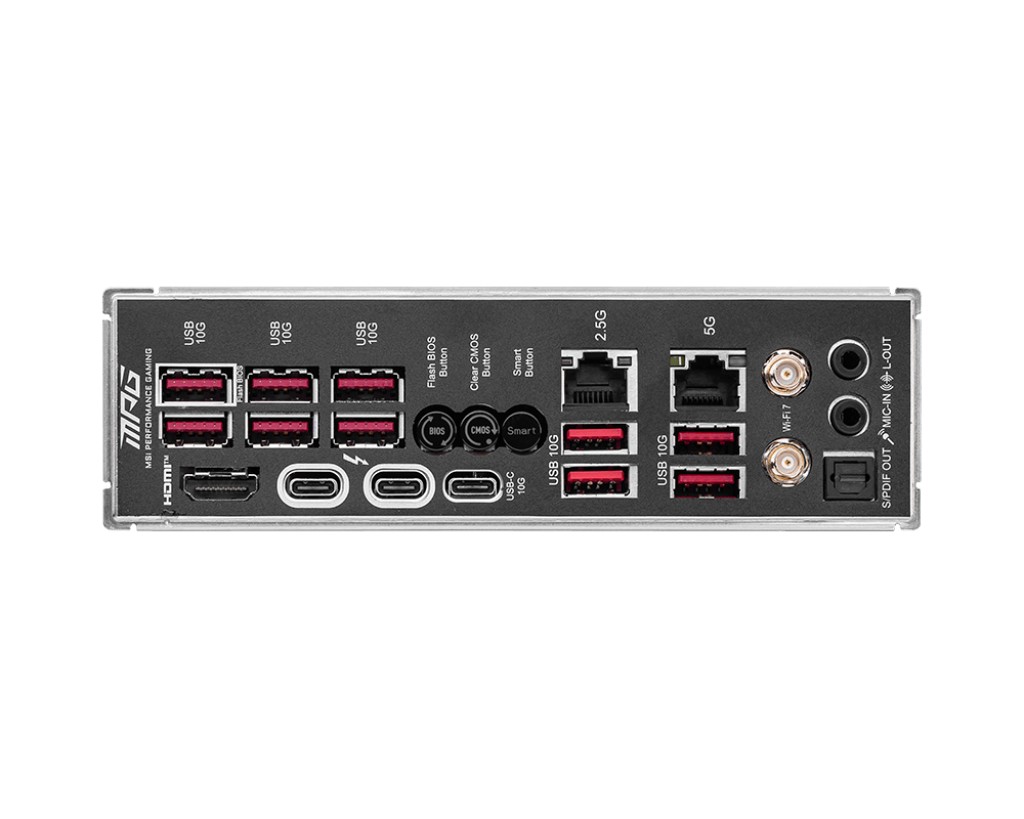

External connectors: 1 x Flash BIOS Button

External connectors: 1 x USB 3.1 Type-C

External connectors: 1 x Przycisk Clear CMOS

External connectors: 1 x HDMI

External connectors: 1 x Line Out

External connectors: 1 x MIC

External connectors: 1 x Smart Button

External connectors: 2 x RJ-45

External connectors: 1 x S/PDIF

External connectors: 10 x USB 3.1

External connectors: 2 x Thunderbolt 4

Onboard connectors: 1 x Water Flow connector

Onboard connectors: 1 x EZ Conn-header

Onboard connectors: 2 x System panel header

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 1 x Chassis intrusion header

Onboard connectors: 1 x Front Type-C Quick Charge Connector

Onboard connectors: 1 x TPM header

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 4 x USB 2.0/1.1

Onboard connectors: 4 x USB 3.0

Onboard connectors: 1 x USB C

Onboard connectors: 1 x 4pin CPU fan

Onboard connectors: 5 x 4pin Chassis fan

Onboard connectors: 1 x 4-pin water-pump-fan

Onboard connectors: 1 x 8pin 12V power

Onboard connectors: 1 x Thermal sensor connector

Onboard connectors: 1 x RGB LED strip header

Onboard connectors: 3 x Addressable LED

Form factor: ATX

Supported operating systems: Windows 11
