Αναλυτική Περιγραφή

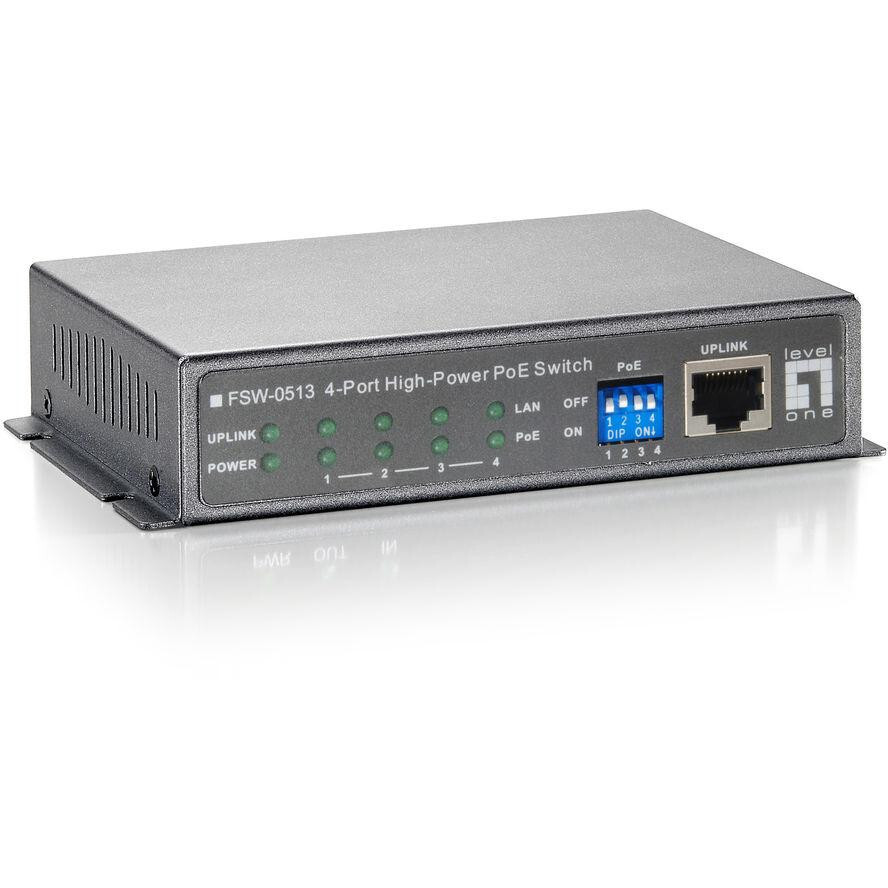

LevelOne FSW-0513 is a 10 / 100Mbps Fast Ethernet Switch with 4 high-power PoE ports and one uplink port.
The FSW-0513 provides a total of 120W for PoE supply available, so that the switch is the optimal choice for network devices with high energy requirements, such as outdoor cameras and access points. With high-power PoE, the reach of PoE power supply can be expanded by several hundred meters.
4 DIP switches, the PoE functionality for each port can be enabled and disabled. The internal PoE power supply can deliver up to 48W per port. The FSW-0513 is compact, so it is also suitable for desktop users with limited space.
- Provides flexibility of 4 x 10 / 100BASE-TX-PoE ports
- compatible IEEE 802.3af PoE for ease of use and installation
- DIP switches for controlling the activity of all PoE ports
- Automatic detection and protection of non-standard PoE devices
- 10/100 Mb / s, full / half duplex, auto-negotiation, auto-MDI / MDIX
- IEEE -802.3x monitoring protects against lost packets and ensures reliable data transmission
- total PoE power: 120 W, up to 52 W per port
| design |
|
certification
|
|
FCC, CE
|
|
Color of product
|
|
Black, Gray
|
|
LED displays
|
|
Uplink, LAN, PoE, power
|
|
On / off switch
|
|
buffer size
|
|
48 KB
|
|
Auto-negotiation function
|
|
energy
|
|
output voltage
|
|
56 V
|
|
output power
|
|
2.15 A
|
|
Power consumption (typical)
|
|
120 W
|
|
Power over Ethernet (PoE)
|
|
Power protection features
|
|
Overcurrent, short circuit
|
|
Power over Ethernet (PoE) support
|
|
Power over Ethernet (PoE) ports
|
|
1
|
|
Power-over-Ethernet (PoE) power per port
|
|
52 W
|
|
Total output Power over Ethernet (PoE)
|
|
120 W
|
|
Connections and interfaces
|
|
DC connection
|
|
Number of basic switching RJ-45 Ethernet ports
|
|
5
|
|
Basic switching RJ-45 Ethernet port type
|
|
Fast Ethernet (10/100)
|
|
Copper Ethernet cabling technology
|
|
10BASE-T, 100BASE-TX
|
|
network
|
|
Networking standards
|
|
IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
|
|
full duplex
|
|
supported cable types
|
|
Cat5
|
|
Auto MDI / MDI-X
|
|
data transfer
|
|
MAC address table
|
|
1024 entries
|
|
Routing / switching capacity
|
|
1 Gbit / s
|
|
Store-and-Forward
|
|
Packet forwarding rate (100 Mbit / s)
|
|
14,800 pps
|
|
Packet forwarding rate (10 Mbit / s)
|
|
14,880 pps
|
|
Weight & dimensions
|
|
width
|
|
90 mm
|
|
depth
|
|
120 mm
|
|
height
|
|
28 mm
|
|
mass
|
|
800 g
|
|
operating conditions
|
|
Temperature range in operation
|
|
0 - 45 ° C
|
|
Storage temperature range
|
|
-40 - 70 ° C
|
|
Humidity in operation
|
|
10 - 90%
|
|
Humidity (non-condensing)
|
|
10 - 90%
|
|
Other features
|
|
country of origin
|
|
Taiwan
|
|
packaging information
|
|
operating manual
|
|
AC power adapter
|
|
cables included
|
|
AC
|
