Detailed Description

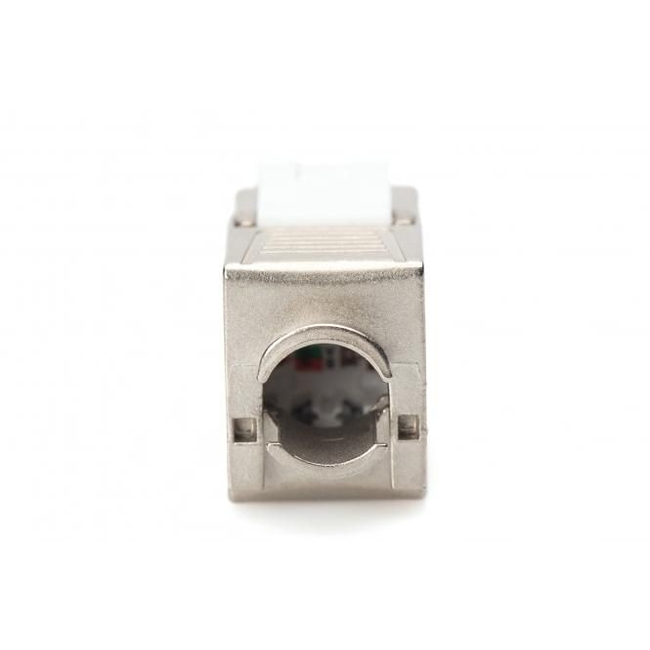

The DIGITUS Keystone Jack, model DN-93615-48, is a shielded Category 6A (CAT 6A) module designed specifically for high-speed networking applications. Its robust design ensures high-performance and link quality while minimizing electromagnetic interference (EMI).
This compact module allows installation of 48 pieces in a row of 483 mm (19") 1U panels, making it highly efficient for modular patch panels and wall outlets. Below are some key features:
- 360° Cable Screen Connection for enhanced EMI protection.
- Zinc Die-Cast Enclosure, offering durability and corrosion resistance.
- Phosphor Bronze Contacts, coated with nickel and gold for reliable connections.
- Supports wires with diameters from AWG 26/7 to AWG 22/1.
The modules specifications ensure compatibility with various network configurations through adherence to standards such as EIA/TIA 568 A & B. It also meets Category 6A certification, as specified by ANSI/EIA/TIA 568C.2.1 and ISO/IEC 11801.
With an operational temperature range from -20 °C to +70 °C, the module is designed to withstand environmental challenges. Overall, the DIGITUS CAT 6A Keystone Jack delivers a perfect blend of performance, durability, and ease of installation.
Specifications
-
Cable Screen Connection
- 360°
-
Material Enclosure
- Zinc die-cast and nickel-plated
-
Material Contacts
- Phosphor bronze, nickel and gold (0.5 ΅)
-
Insertion Force
- 30 N
-
Retention Strength
- 7.7 kg
-
Operating Temperature
- -20 °C to +70 °C
-
Mating Cycles
- >750
-
Copper Cable Diameter
- AWG 26/7 to AWG 22/1
-
Wiring Standard
- EIA/TIA 568 A & B
-
Certification
- Category 6A
-
Dimensions
- 21.0 x 14.5 x 34.5 mm
-
Weight
- 19.5 grams
-
Suitability
- PoE/PoE+/4PPoE
-
Cable Installation
- Tool-free using LSA connectors
-
Cable Grip and Fixation
- Intelligent cable manager
