Detailed Description

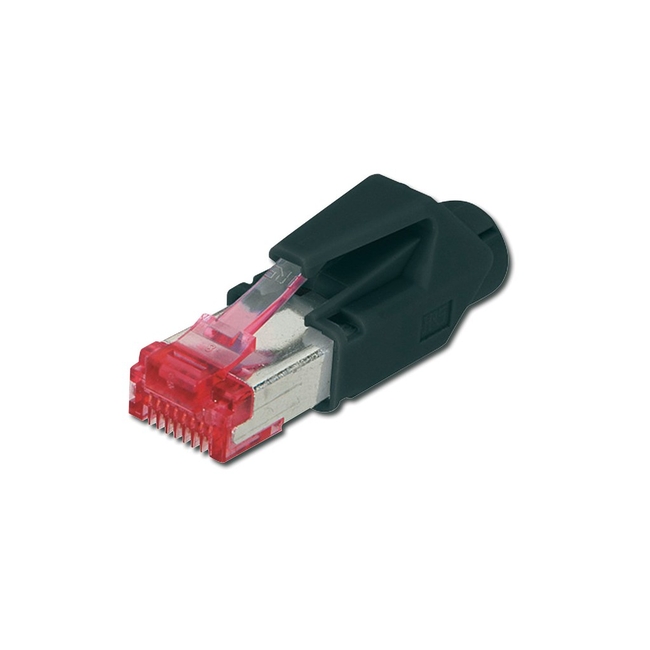

The DIGITUS CAT6 RJ45 Modular Steckerverbinder, HIROSE TM21 is a top-notch component crucial for modern data communication systems. With a design tailored to meet Enhanced Category 5 (CAT5e) standards, this modular plug guarantees quick and robust connections.
Key Features:
- Compatibility and Standards: Fully compliant with CAT5/CAT5e standards, it supports a wide range of Ethernet applications.
- EMI Protection: The TM21 series incorporates extensive EMI (Electromagnetic Interference) protection, essential for preserving signal integrity in environments with electrical noise.
- Protected Latch Tab: Features a secure latch tab that guarantees stable connections.
- Cable Assembly Flexibility: Suitable for both solid and stranded wires, allowing for versatile cable choices.
- Simplified Termination: Installation is easier thanks to the simplified termination process.
- Standard Compliance: Conforms to ISO 8877 standards essential for ISDN connectors.
This connector promises not just performance but also enhanced reliability, making it the ideal choice for high-speed LAN applications where quality is paramount.
Specifications
-
Connector Type
- RJ-45
-
Industry Standard
- FCC, ISO8877
-
Performance Characteristics
- CAT5e
-
Transmission Rate
- Up to 1.0 Gbps
-
Water Resistance
- Not specified
-
Opening Size
- 8 positions
-
Number of Positions
- 8
-
Number of Ports
- 1
-
Metal Shields
- Yes (shielded)
-
Wire Termination Method
- Piercing
-
Mounting Style
- Straight
-
Contact Plating
- Gold
-
Rated Current
- 1.0 A
-
Rated Voltage (AC)
- Up to 125.0 V
-
Recommended Wire Type
- Shielded or non-shielded cable
-
Recommended Min. Wire Size (AWG)
- 25 AWG
-
Recommended Max. Wire Size (AWG)
- 24 AWG
-
Recommended Min. Wire Size (mm²)
- 0.2 mm²
-
Recommended Max. Wire Size (mm²)
- 0.2 mm²
-
Mating/Unmating Cycles
- Up to 200 cycles (TM21P-88P) or 750 cycles (TM21P-88P)
-
Operating Temperature Max.
- 60°C
-
Operating Temperature Min.
- -25°C
