Barebone Asus TINKER BOARD 3S/4G/16G//SBC
| Installment plan | Amount / month |
|---|---|
| 2 | 87,10 € |
| 4 | 43,78 € |
| 6 | 29,34 € |
| 8 | 22,12 € |
| 10 | 17,79 € |
| 12 | 14,91 € |
| 18 | 10,09 € |
| 24 | 7,69 € |
| 36 | 5,29 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

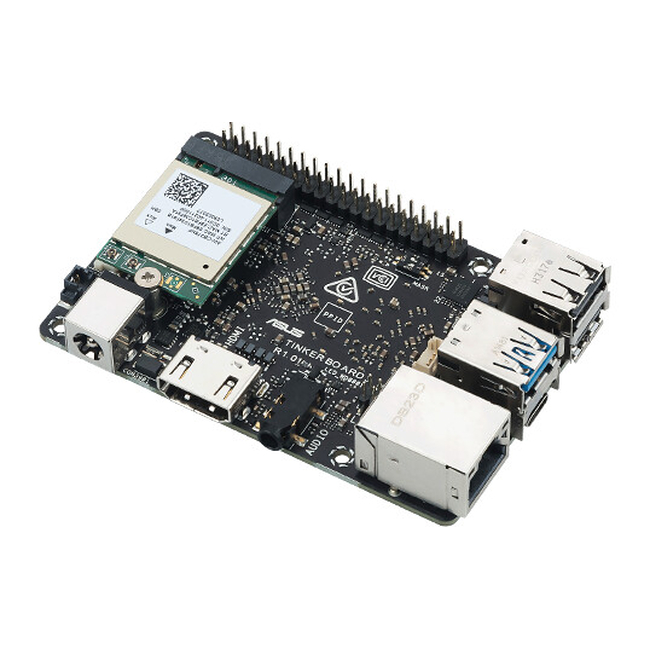

The ASUS Tinker Board 3S is a versatile single-board computer (SBC) tailored for various applications, including IoT, smart retail, and industrial use. This board is powered by the Rockchip RK3566 SoC, featuring a quad-core Cortex-A55 CPU that can operate at speeds of up to 1.8 GHz or 2.0 GHz. It also integrates an Arm Mali-G52 GPU and a 0.8 TOPS AI accelerator, making it perfect for AI tasks such as object detection, speech recognition, and face recognition.
Key Technical Specifications:
- SoC: Rockchip RK3566
- CPU: Quad-core Cortex-A55 processor @ up to 1.8/2.0 GHz
- GPU: Arm Mali-G52 GPU
- NPU: 0.8 TOPS AI accelerator
- System Memory: 2GB or 4GB LPDDR4x RAM
- Storage: 16GB eMMC flash + microSD card slot
Connectivity and Interfaces:
- Video Output: HDMI 2.0 up to 4Kp60
- Audio: 3.5mm stereo audio jack
- Networking: Gigabit Ethernet, dual band WiFi 5, Bluetooth 5.0
- USB: 1x USB 3.0, 2x USB 2.0, 1x OTG micro USB
Expansion and GPIO:
- GPIO Pins: Up to 28 GPIO pins with various interfaces
- M.2 E-Key Slot: For WiFi/Bluetooth or Google Coral Edge TPU
Power and Environmental Specifications:
- Power Supply: 12 to 19V DC input
- Dimensions: 85 x 56 mm
- Temperature Range: 0°C to +60°C
The ASUS Tinker Board 3S is not just powerful but also compact, making it an excellent choice for developers and makers aiming to innovate in a multitude of fields.
Specifications
-
SoC
- Rockchip RK3566
-
CPU
- Quad-core Cortex-A55 processor @ up to 1.8/2.0 GHz
-
GPU
- Arm Mali-G52 GPU
-
NPU
- 0.8 TOPS AI accelerator
-
System Memory
- 2GB or 4GB LPDDR4x RAM
-
Storage
- 16GB eMMC flash + microSD card slot
-
Video Output
- HDMI 2.0 up to 4Kp60
-
Audio
- 3.5mm stereo audio jack
-
Networking
- Gigabit Ethernet, dual band WiFi 5, Bluetooth 5.0
-
USB
- 1x USB 3.0, 2x USB 2.0, 1x OTG micro USB
-
GPIO Pins
- Up to 28 GPIO pins with various interfaces
-
M.2 E-Key Slot
- For WiFi/Bluetooth or Google Coral Edge TPU
-
Power Supply
- 12 to 19V DC input
-
Dimensions
- 85 x 56 mm
-
Temperature Range
- 0°C to +60°C
