Sku: 1173523056
Ρελέ Ράγας Shelly Relais Pro 2PM WLAN LAN Max. 25A 2 Kan?le 1 Phase BT Measuring
96,49 €
Up to 36 instalments by credit card x 3,01€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 49,63 € |
| 4 | 24,95 € |
| 6 | 16,72 € |
| 8 | 12,61 € |
| 10 | 10,14 € |
| 12 | 8,49 € |
| 18 | 5,75 € |
| 24 | 4,38 € |
| 36 | 3,01 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

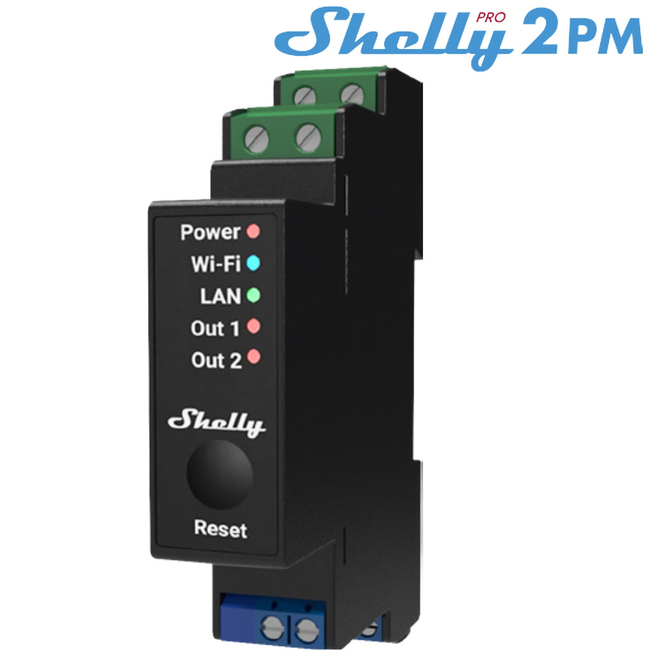

The Shelly Relais Pro 2PM is a versatile, two-channel smart relay mountable on a DIN rail. It is crafted for professional automation solutions, capable of handling a total current of up to 25A. Each channel can manage up to 16A, making it perfect for various applications such as roller shutters, curtains, and awnings.
Key Features:

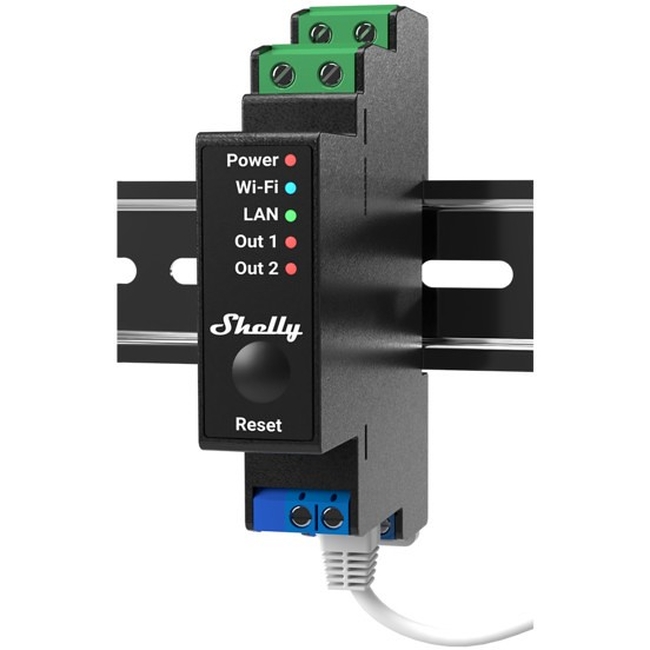

- Mounting: Designed for DIN rail, suitable for breaker boxes.
- Power Measurement: Equipped with integrated precise power meters for independent channel monitoring.
- Communication: Supports Wi-Fi, LAN, and Bluetooth for remote control.
- Firmware: Enhanced with second-generation firmware for customization.
- Automation Capabilities: Includes two-directional motor control and scripting functionalities.
Environmental Specifications:
- Ambient Temperature: -20 °C to 40 °C
- Humidity: 30 % to 70 % RH
- Max. Altitude: 2000 m
This device is ideal for professional integrations and enhances automation efforts with extensive features and specifications.
Specifications
-
Total Current
- 25 A
-
Channel Current
- 16 A
-
Power Supply Voltage
- 110 - 240 V AC
-
Power Consumption
- Less than 3 W
-
Ambient Temperature
- -20 to 40 °C
-
Humidity
- 30 - 70 % RH
-
Max Altitude
- 2000 m
-
Max Switching Voltage AC
- 240 V
-
Max Switching Current AC
- 16 A per channel
-
Size
- 94x19x69 ±0.5 mm
-
Screw Terminal Torque
- 0.4 Nm
-
Conductor Cross Section
- 0.5 to 2.5 mm²
-
Conductor Stripped Length
- 6 to 7 mm
-
Shell Material
- Plastic
