Καλώδιο Οπτικής Ίνας Digitus LWL PatchCable LC -> SC 3.00m Multimode Duplex OM3
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

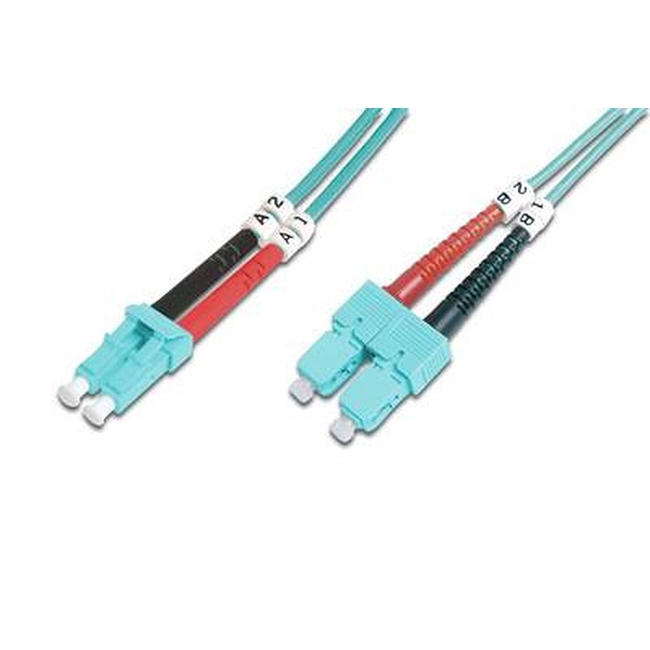

The DIGITUS LWL Patchkabel LC -> SC 3.00m Multimode Duplex OM3 is a state-of-the-art fiber optic patch cable designed for high-speed data transmission in multimode fiber networks. Measuring 3 meters in length, it connects LC (Lucent Connector) to SC (Subscriber Connector) ports, making it ideal for various applications.
This patch cable is made using OM3 multimode fiber, which is optimized for 10 Gb/s data rates over short to medium distances. Its specifications highlight:
- Fiber Type: 50/125 μm multimode fiber
- Attenuation at 850 nm: Typical - 2.2 dB/km, Maximum - 3.5 dB/km
- Bandwidth: ? 1500 MHz·km at 850 nm
Additionally, the cable supports operations up to 300 meters at 10 Gb/s for both 850 nm and 1300 nm wavelengths. The connectors are recognized for their reliability:
- LC Connector: Compact and used in high-density applications
- SC Connector: User-friendly and dependable
With its variety of color coding options and robust build, the DIGITUS LWL Patchkabel is an excellent choice for modern data centers and enterprise networking solutions.
Specifications
-
Fiber Type
- 50/125 μm multimode
-
Attenuation Coefficient 850 nm
- 2.2 dB/km
-
Maximum Attenuation 850 nm
- 3.5 dB/km
-
Attenuation Coefficient 1300 nm
- 0.5 dB/km
-
Maximum Attenuation 1300 nm
- 1.5 dB/km
-
Overfilled Launch Bandwidth 850 nm
- ? 1500 MHz·km
-
Overfilled Launch Bandwidth 1300 nm
- ? 500 MHz·km
-
Effective Modal Bandwidth 850 nm
- ? 2000 MHz·km
-
Transmission Link Length
- up to 300 meters at 10 Gb/s
-
Connector Type
- LC (Lucent Connector) and SC (Subscriber Connector)
-
Cable Length
- 3 meters
-
Color Coding
- Available in pink, black, red, white
-
Manufacturer
- Assmann
-
Manufacturer Part #
- DK-2532-03/3
-
EAN Code
- 4016032249597
-
UNSPSC Code
- 26121604
