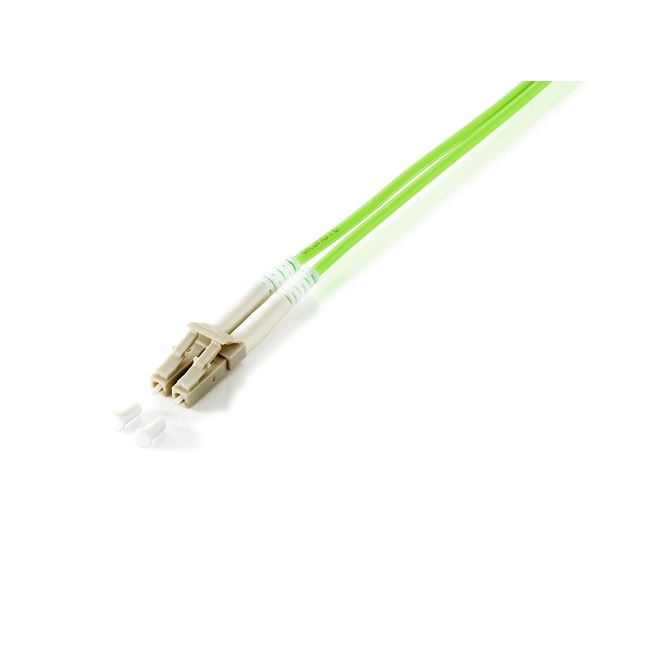

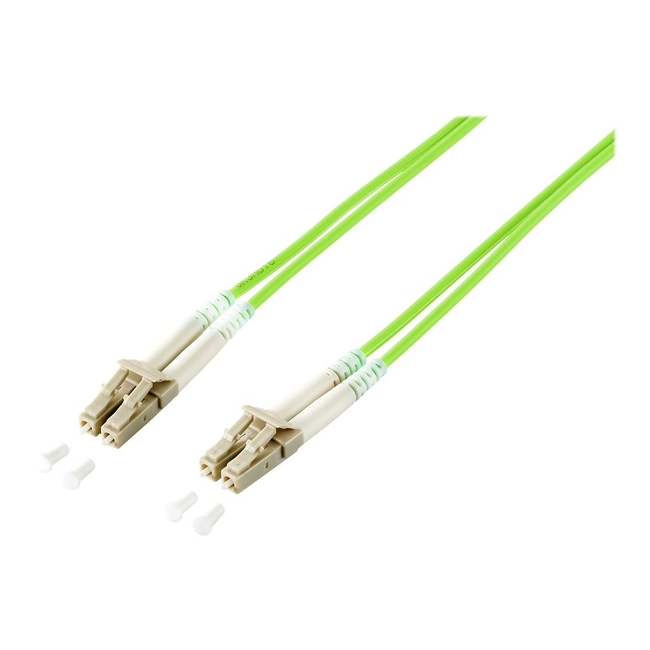

Καλώδιο Οπτικής Ίνας Equip LC/LC Optic Fiber Patch Cord OM5 M/M 20.00m
| Installment plan | Amount / month |
|---|---|
| 2 | 25,39 € |
| 4 | 12,76 € |
| 6 | 8,55 € |
| 8 | 6,45 € |
| 10 | 5,19 € |
| 12 | 4,34 € |
| 18 | 2,94 € |
| 24 | 2,24 € |
| 36 | 1,54 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The Equip LC/LC Optic Fiber Patch Cord OM5 M/M 20.00m is an exceptional fiber optic patch cable designed for high-performance networks. This 20-meter long cable features male-to-male (M/M) duplex LC connectors for optimal data transmission. It utilizes Corning 50/125um laser-optimized wideband multimode fiber (WB-MMF), enabling support for Shortwave Wavelength Division Multiplexing (SWDM).
This technology enhances data transmission efficiency significantly, making it perfect for demanding applications in data centers and telecommunications.
Key Technical Specifications:
- Fiber Type: OM5 Wideband Multimode Fiber (WB-MMF)
- Core Diameter: 50 micrometers (΅m)
- Operating Temperature: -20°C to +70°C
- Jacket Material: LSZH (Low Smoke Zero Halogen)
The cable also boasts high precision LC Duplex Connectors and a low maximum connector loss of 0.50 dB. Furthermore, it supports bandwidth and distance for various applications:
- 100GbE up to 150 meters
- 40GbE up to 550 meters
- 10GbE up to 400 meters
This cable is compliant with TIA/EIA 492AAAE and IEC60793-2-10 A1a.4 standards, ensuring the highest quality standards.
Specifications
-
Fiber Type
- OM5 Wideband Multimode Fiber (WB-MMF)
-
Core Diameter
- 50 ΅m
-
Cladding Diameter
- 125 ΅m
-
Operating Temperature
- -20°C to +70°C
-
Jacket Color
- Lime Green
-
Jacket Material
- LSZH (Low Smoke Zero Halogen)
-
Connector Type
- LC Duplex Connectors
-
Maximum Insertion Loss
- 0.50 dB
-
Typical Insertion Loss
- 0.30 dB
-
Typical Return Loss
- -25 dB
-
Bandwidth for 100GbE
- up to 150 meters
-
Bandwidth for 40GbE
- up to 550 meters
-
Bandwidth for 10GbE
- up to 400 meters
-
Standards Compliance
- TIA/EIA 492AAAE and IEC60793-2-10 A1a.4
-
RoHS Compliance
- Yes
-
OFNR Rated
- Yes
