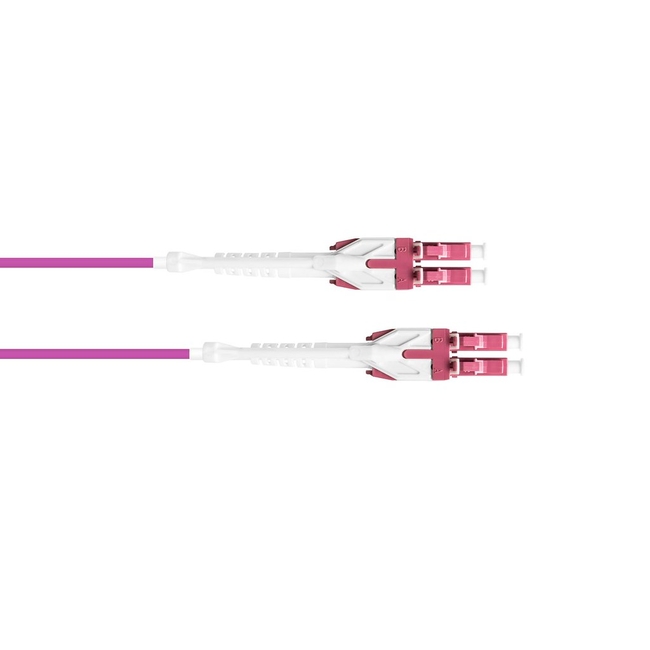

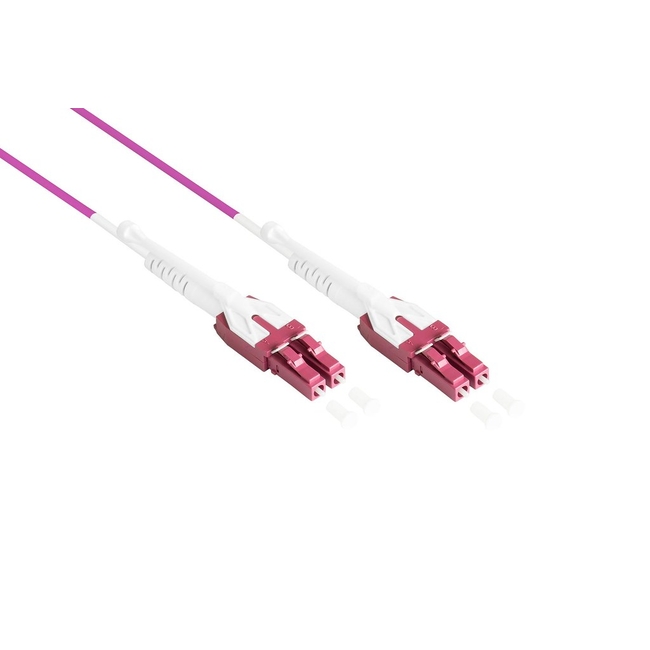

Καλώδιο Οπτικής Ίνας Good Connections LWL Duplex MM 50/125? LC/LC UNIBOOT, 1m
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The Good Connections LWL Duplex MM 50/125? LC/LC UNIBOOT, 1m is an expertly crafted multimode fiber optic patch cable that ensures reliable data transmission across many networking applications. Its design is tailored for high-speed requirements, making it indispensable in modern communication systems.
This patch cable connects two LC connectors and is specifically designed for multimode fiber optic networks. The durable PVC jacket not only enhances flexibility but also provides fire-retardant properties, which simplifies installation.
Key Features:
- Optical Mode: Multimode (MM)
- Core/Cladding Diameter: 50/125 microns
- Number of Fibers: 2
- Jacket Color: Orange
- Connector Type: LC Duplex
Moreover, this cable has been carefully engineered to provide minimal signal loss. The maximum connector loss is rated at 0.50 dB, while the typical return loss is -25 dB, ensuring optimal performance.
Additional Highlights:
- Cable Length: 1 meter
- Termination: LC to LC
- Compliance: ROHS Compliant
- UL Rating: OFNR
Whether for data centers or telecommunication applications, this cable supports both 1G and 10G Ethernet speeds, making it versatile for various networking needs.
Specifications
-
Optical Mode
- Multimode (MM)
-
Core/Cladding Diameter
- 50/125 microns
-
Number of Fibers
- 2
-
Jacket Color
- Orange
-
Jacket Material
- PVC
-
Jacket Outer Diameter
- 2.0 mm
-
Connector Type
- LC Duplex
-
Connector Polish Type
- UPC
-
Maximum Connector Loss
- 0.50 dB
-
Typical Connector Loss
- 0.30 dB
-
Typical Return Loss
- -25 dB
-
Optical Mode Type
- OM2 Standard Multimode Fiber
-
Transmission Distance for 1G GbE
- Up to 550 meters
-
Transmission Distance for 10G GbE
- Up to 82 meters
-
Cable Length
- 1 meter
-
Cable Type
- Duplex Fiber Cable
-
Termination
- LC to LC
-
Compliance
- ROHS Compliant
-
UL Rating
- OFNR
