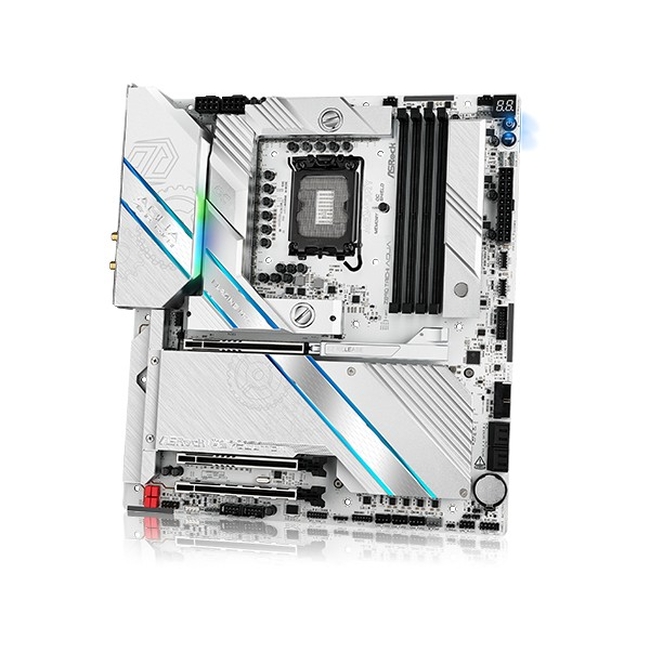

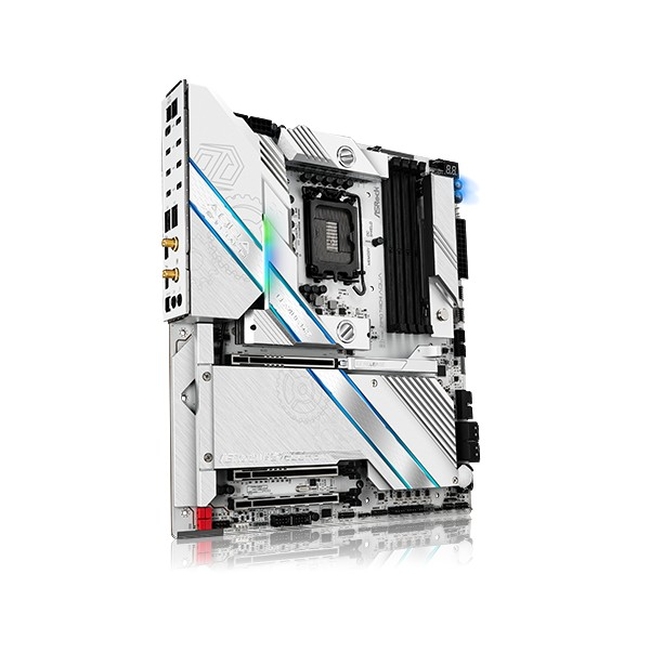

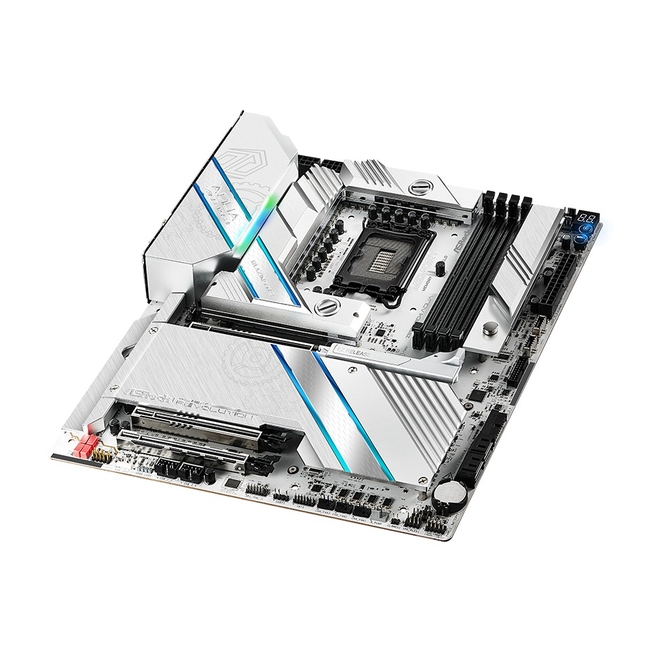

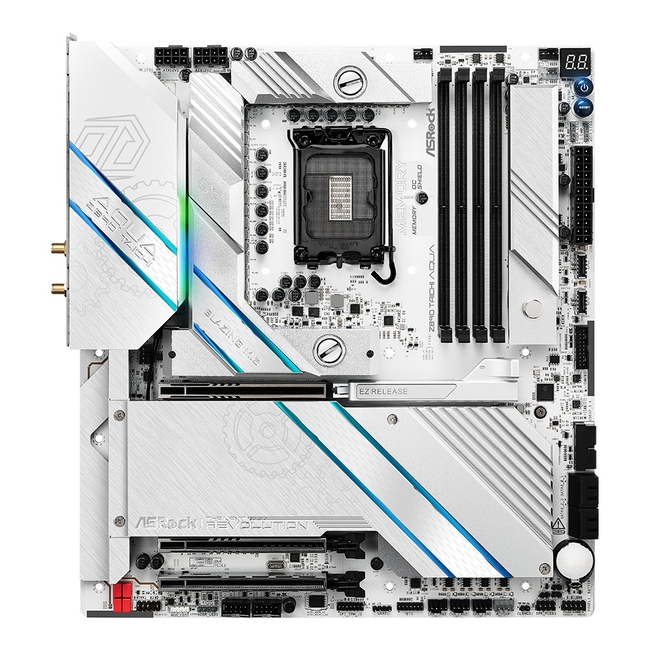

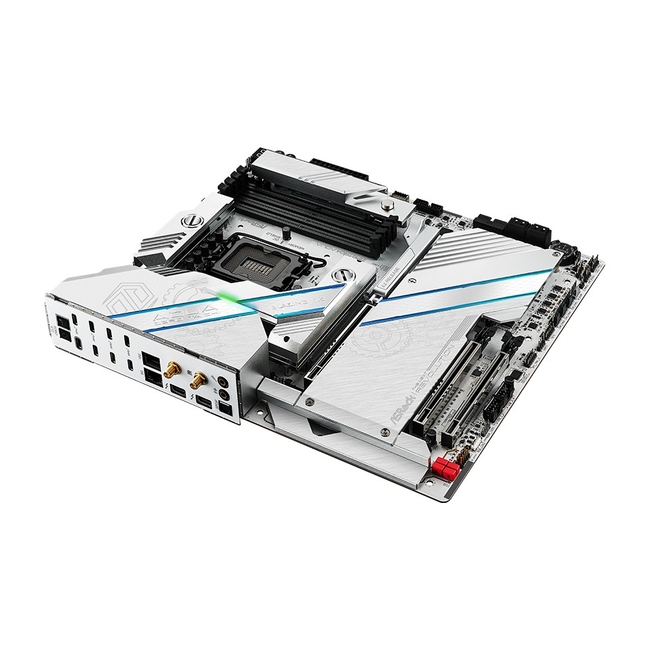

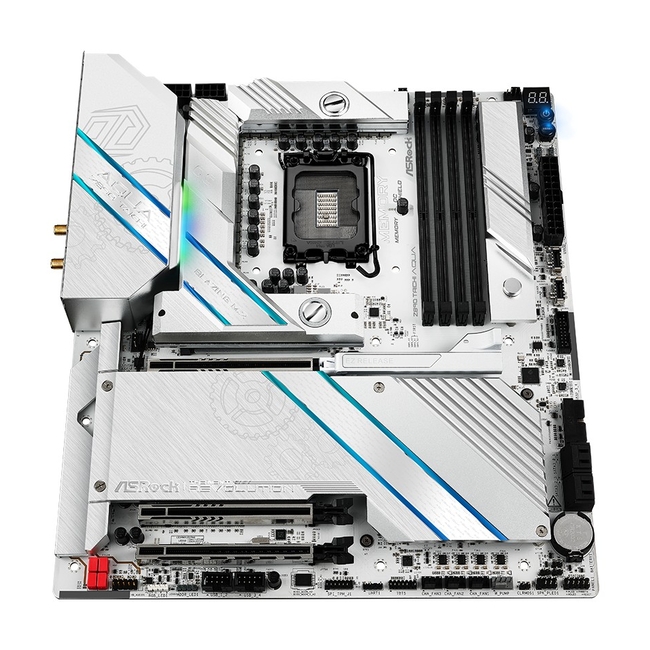

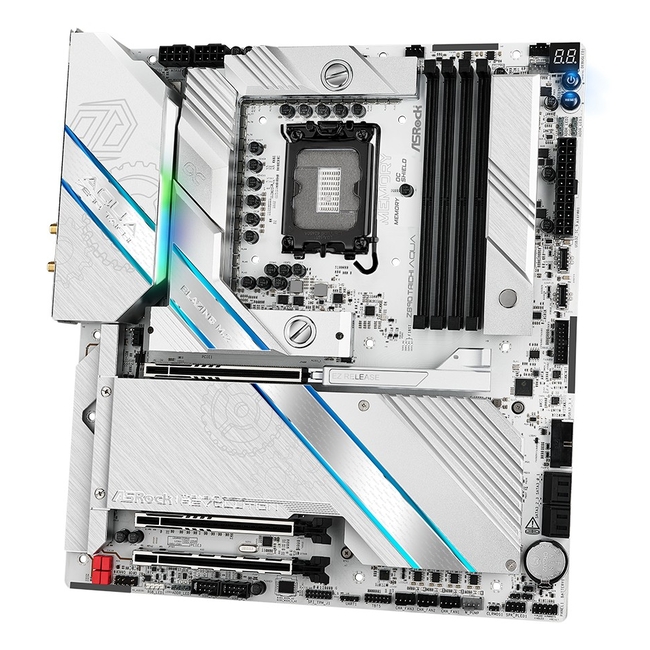

Model:

Z890 TAICHI AQUA

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: No

Chipset manufacturer: Intel

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 9200 MHz

Memory bus frequency: 6800 MHz

Memory bus frequency: 5800 MHz

Expansion slots: 1 x PCIe 4.0 x 16

Expansion slots: 2 x PCIe 5.0 x16

Expansion slots: 1 x M.2

RAID: Yes

Network interface: 1 x 10Gbit/s 10GBase-T

Network interface: Bluetooth

Network interface: 1 x 10/100/1000/2500/5000 Mbit/s

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

FireWire (IEEE 1394): No

COM connector / port: No

LPT connector / port: No

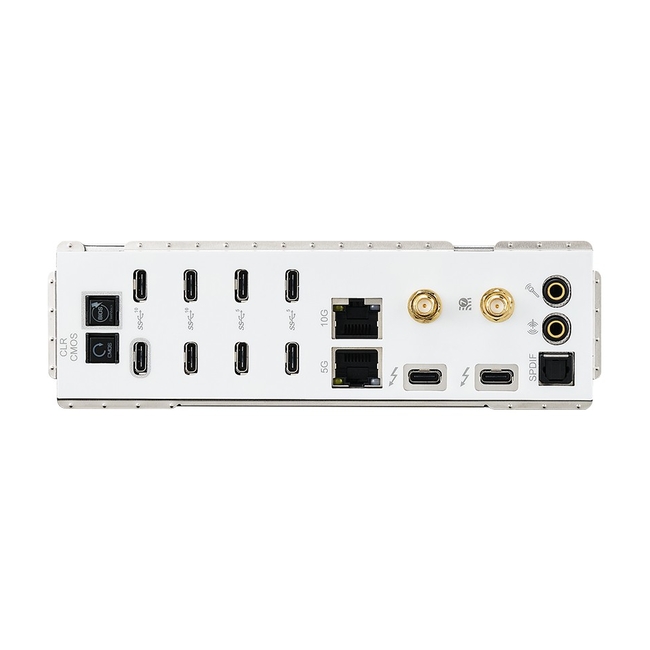

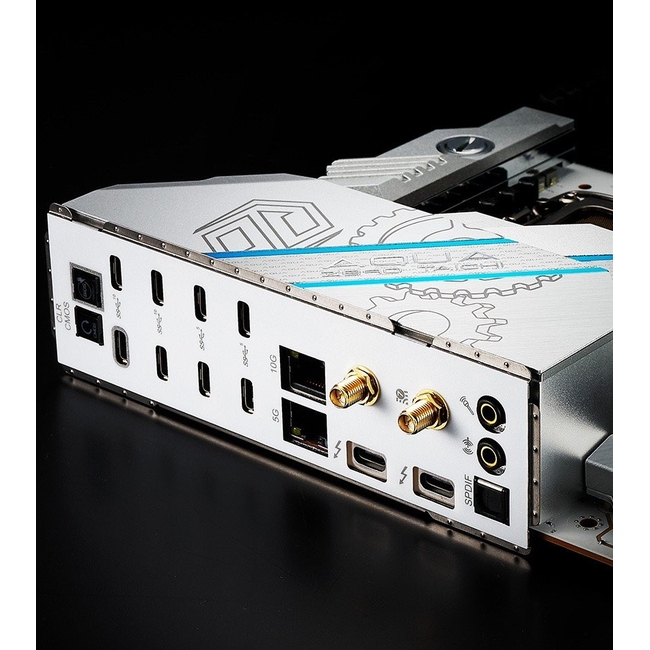

External connectors: 1 x Przycisk Clear CMOS

External connectors: 1 x Flash BIOS Button

External connectors: 4 x USB 3.2 Gen 1 Type-C

External connectors: 4 x USB 3.2 Gen2 Type-C

External connectors: 2 x RJ-45

External connectors: 1 x Line Out

External connectors: 1 x Line In

External connectors: 1 x S/PDIF

External connectors: 2 x Thunderbolt 4

External connectors: 2 x SMA

Onboard connectors: 3 x Addressable LED

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 2 x 4pin wentylator CPU

Onboard connectors: 1 x Reset button

Onboard connectors: 2 x 4pin Chassis fan

Onboard connectors: 1 x 4-pin water-pump-fan

Onboard connectors: 3 x Thermistor Cable Header

Onboard connectors: 1 x RGB LED strip header

Onboard connectors: 1 x Debug card header

Onboard connectors: 1 x Power led header

Onboard connectors: 1 x Power button

Onboard connectors: 2 x 8pin 12V

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 2 x USB 2.0/1.1 header

Onboard connectors: 2 x USB 3.0 header

Onboard connectors: 2 x USB C

Onboard connectors: 1 x TPM header

Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector

Form factor: E-ATX

Supported operating systems: Windows 11
