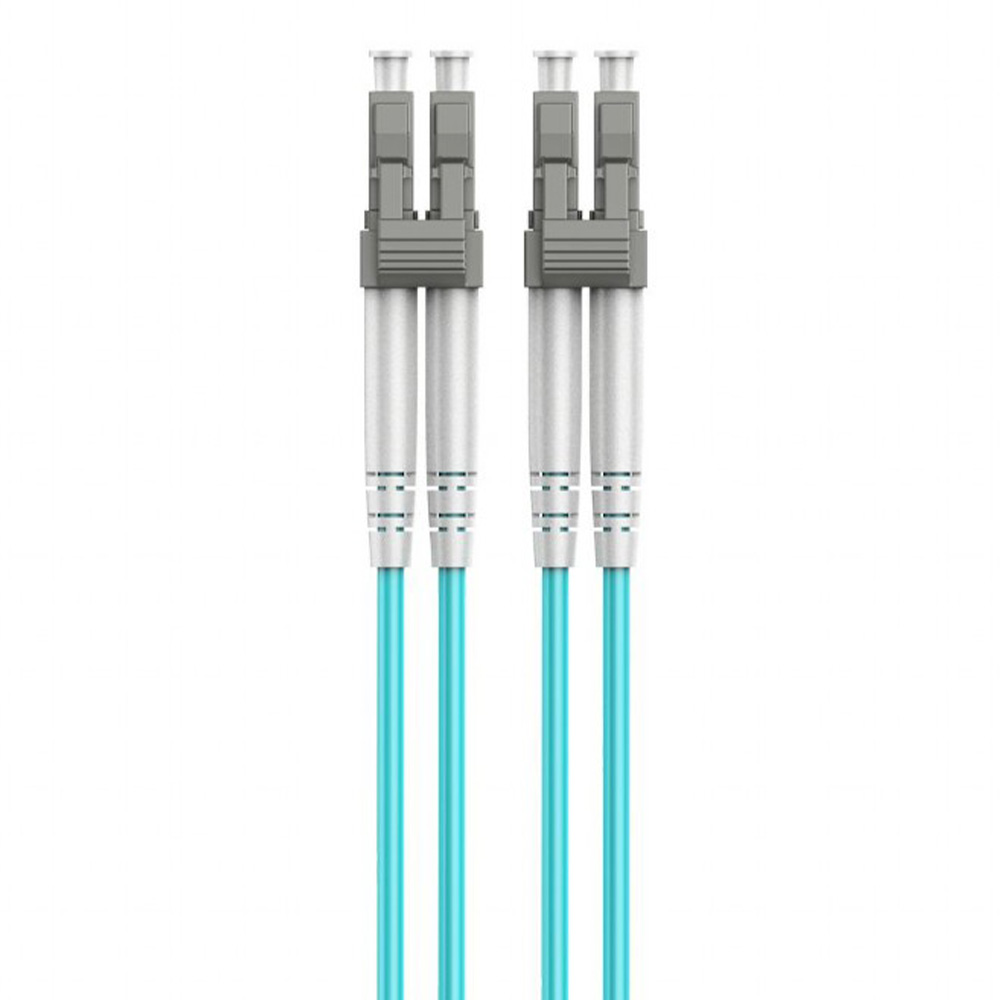

The CABLEXPERT MULTIMODE DUPLEX OM4 50/125 FIBER OPTIC CABLE, LC/LC, 2M is crafted for high-performance fiber optic networking. It is specifically engineered for demanding data transfer applications and belongs to the OM4 category, offering enhanced bandwidth and superior transmission rates compared to OM3.

Key Features:

• Fiber Type: This cable utilizes 50/125 μm multimode fibers, optimized for OM4 standards, facilitating data transfer rates of up to 100 Gbps with minimal signal loss.
• Connectors: Integrated LC/LC connectors are designed for reliability and ease of use. Their compact and push-pull locking mechanism assures a secure connection suitable for high-density applications.

Technical Specifications:

• Type: OM4 Duplex Multimode
• Fiber: 50/125 μm
• Connector 1 & 2: LC UPC (male)
• Insertion Loss: ? 0.3 dB
• Return Loss: ? 20 dB
• Wavelength: 850/1300 nm
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Network Compatibility: Supports 1 Gbps to 100 Gbps speeds
• Insert-Pull Test: < 0.3 dB (1000 times)
• Fire Rating: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20°C to 60°C
• Cable Length: 2 meters

This cable excels in supporting various network speeds and applications, proving its versatility across different environments.
