Detailed Description

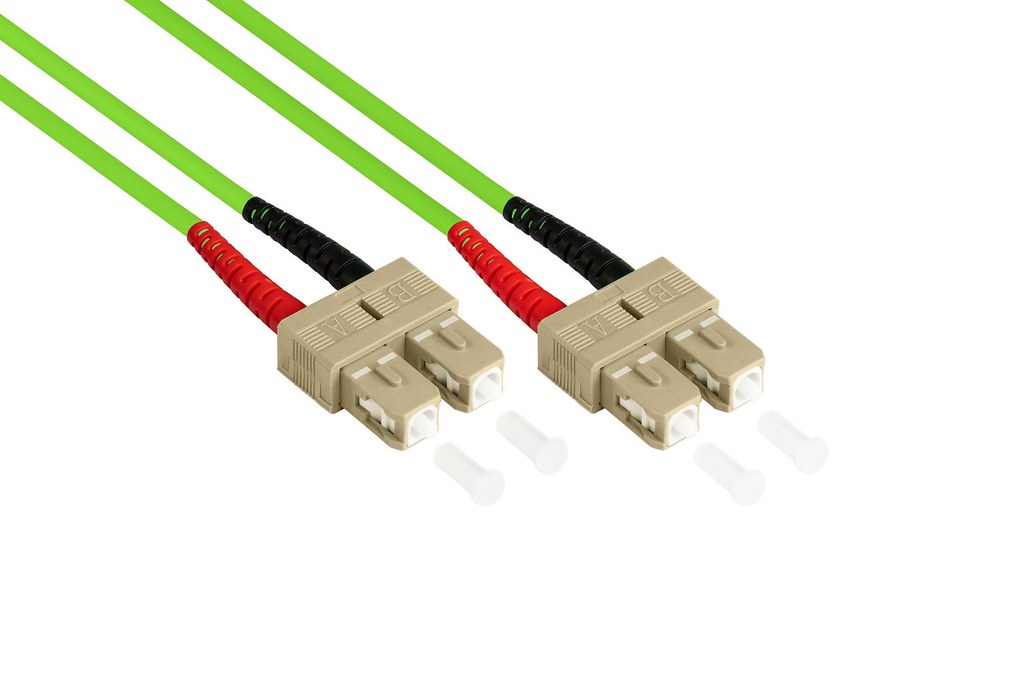

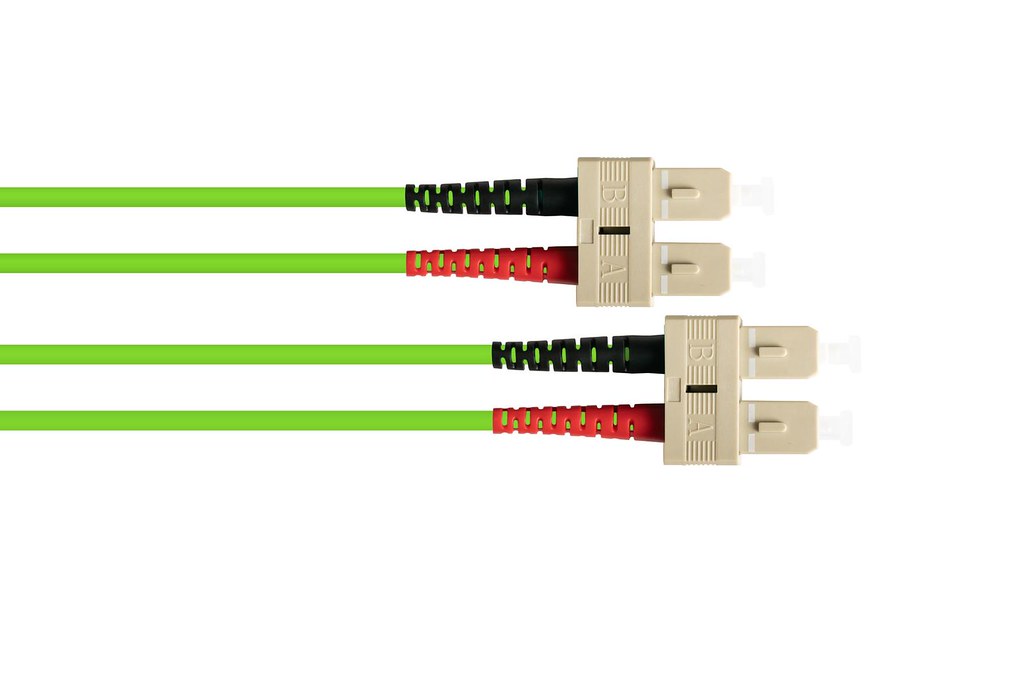

The Good Connections LWL Dpx Patchkabel OM5 MM 50/125΅ SC/SC 5m is a top-tier, pre-terminated fiber optic patch cable, ideal for use in data centers, telecommunications, and high-speed networking environments.
Key Features:
- Fiber Type: OM5 Wideband Multimode Fiber
- Core Diameter: 50 ΅m
- Cladding Diameter: 125 ΅m
This cable ensures optimal optical performance with a minimum Effective Modal Bandwidth (EMB) of 4,700 MHz*km at 850 nm.
Connector Details:
- Termination: SC/SC connectors
- Polish Type: Ultra Physical Contact (UPC)
The quality of the cable is ensured through rigorous inspection and adherence to ANSI/TIA/EIA standards. Additionally, it is offered with a lifetime warranty.
Applications:
- 100GBase-SR10
- 40GBase-eSR4 QSFP+
- 10GBase-SR
- 1GBase-SX Ethernet
With its lime green jacket, the cable is easily identifiable, while its PVC construction allows for flexibility and easy installation.
Specifications
-
EAN Code
- 4014619741427
-
MPN
- LW-805SC5
-
Fiber Type
- OM5 Wideband Multimode Fiber
-
Core Diameter
- 50 ΅m
-
Cladding Diameter
- 125 ΅m
-
Termination
- SC/SC connectors
-
Connector Type
- SC duplex connectors with ceramic ferrules
-
Polish Type
- Ultra Physical Contact (UPC)
-
Effective Modal Bandwidth (EMB)
- Minimum 4,700 MHz*km at 850 nm
-
Overfilled Launch (OFL) Bandwidth
- Minimum 3,500 MHz*km at 850 nm
-
Typical Connector Loss
- 0.30 dB
-
Max Connector Loss
- 0.50 dB
-
Typical Return Loss
- -25 dB
-
Jacket Color
- Lime green
-
Jacket Material
- PVC
-
Jacket OD
- 2.0 mm
-
UL Rating
- OFNR
-
Supported Applications
- 100GBase-SR10, 40GBase-eSR4 QSFP+, 40GBase-SR4, 10GBase-SR, 1GBase-SX Ethernet
-
Supported Distances 100GbE
- Up to 150 meters
-
Supported Distances 40GbE
- Up to 550 meters
-
Supported Distances 10GbE
- Up to 400 meters
-
Supported Distances 1GbE
- Up to 550 meters with mode-conditioning
-
Laser-Optimized
- Yes
-
SWDM Support
- Yes
-
Backward Compatibility
- Yes
-
Quality Control
- Inspected and tested in accordance with ANSI/TIA/EIA-455-171-A
-
Warranty
- Lifetime warranty
