Καλώδιο Οπτικής Ίνας Good Connections LWL Duplex SM 9/125? LC/LC UNIBOOT, 30m
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

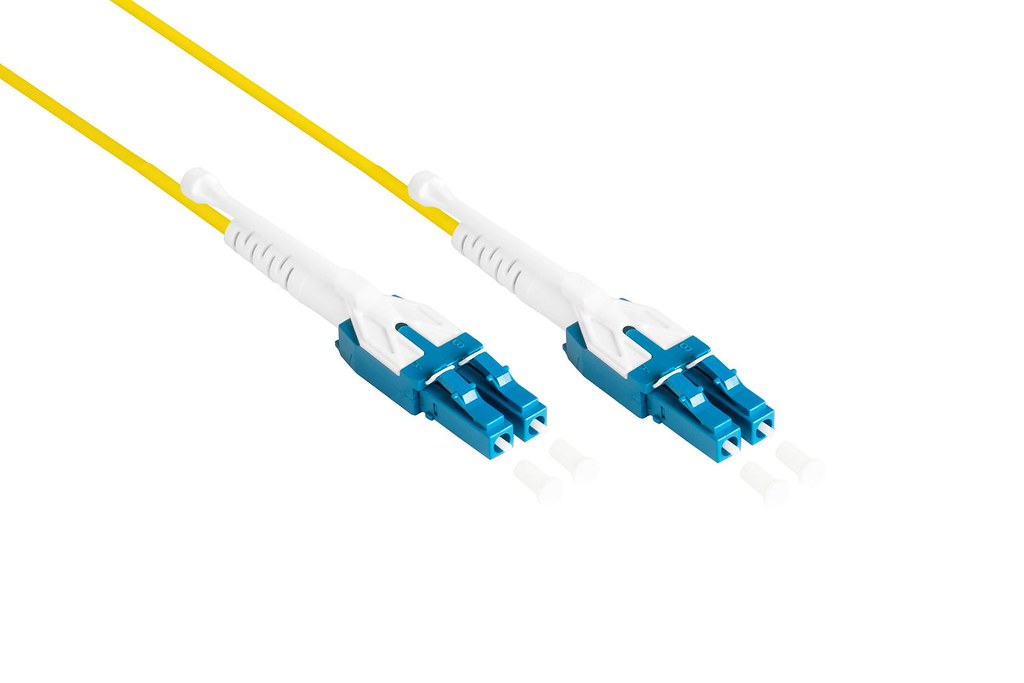

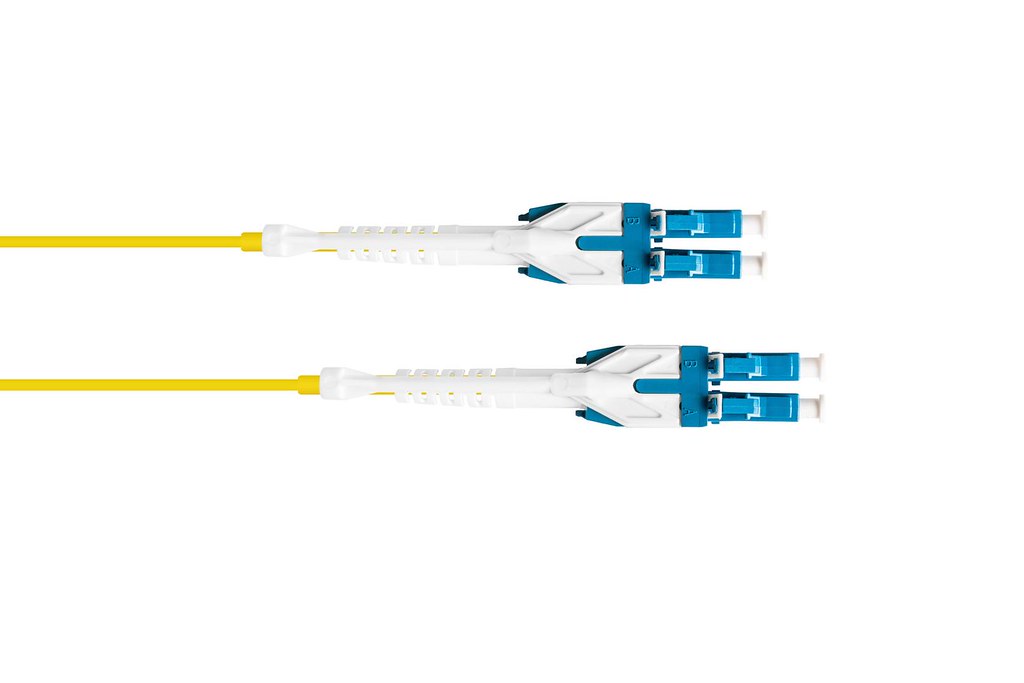

The Good Connections LWL Duplex SM 9/125΅m LC/LC Uniboot fiber optic patch cable is a high-performance, single-mode fiber optic cable designed for high-density applications. Its innovative design meets the data transmission demands of modern networks.
It features LC connectors on both ends, which are known for their compact size and ease of use in dense networking environments. The Uniboot design integrates the two fibers into a single housing, reducing cable management requirements and improving airflow in crowded spaces.
- Fiber Type: Single-mode, 9/125΅m
- Fiber Count: Duplex (2-fiber)
- Connector Type: LC-LC Uniboot
- Polish Type: UPC (Ultra Physical Contact)
This cable is engineered for optical fiber communications systems, optical fiber access networks, and is ideal for premises distribution and local area networks (LAN).
Key Features:
- High Back Reflection Loss: Ensures minimal signal loss during transmission.
- Stable Capability and High Reliability: Designed for consistent performance.
- Excellent Mechanical Capability: Provides durability and resistance to mechanical stress.
- Ideal Solution for High-Speed Data Transmission.
With these specifications, this product is tailored to optimize performance in modern digital environments.
Specifications
-
Fiber Type
- Single-mode, 9/125΅m
-
Fiber Count
- Duplex (2-fiber)
-
Connector Type
- LC-LC Uniboot
-
Polish Type
- UPC (Ultra Physical Contact)
-
Jacket Material
- OFNR (Optical Fiber Nonconductive Riser) rated PVC
-
Cable Length
- 30 meters
-
Cable Diameter
- 2.0 mm
-
Tensile Strength
- 70 N
-
Length Tolerance
- ±1 cm
-
Insertion Loss
- ?0.2 dB
-
Return Loss
- ?50 dB
-
Repeatability
- ?0.2 dB
-
Interchangeability
- ?0.2 dB
-
Operating Temperature
- -20°C to 70°C
-
Storage Temperature
- -40°C to 85°C
-
Compliance
- Telcordia GR-326-CORE compliant, RoHS compliant
-
Application
- Suitable for optical fiber communications systems, optical fiber access networks, optical fiber CATV, optical fiber test equipment, and optical fiber data communication.
