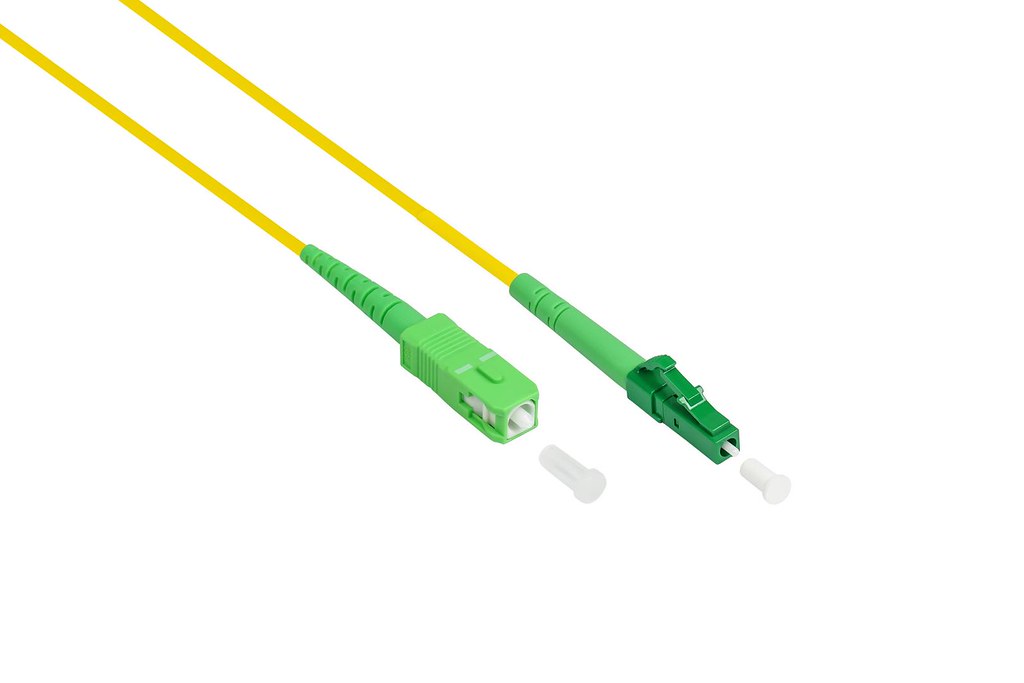

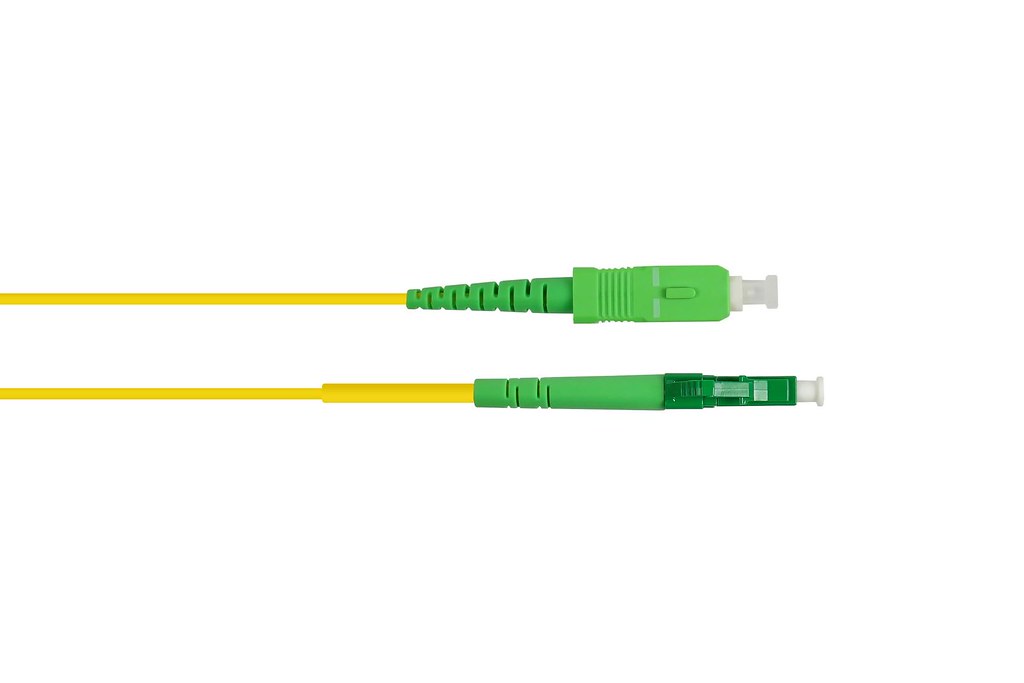

The Good Connections OS2 LWL Spx Patchkabel LC/SC SM 9/125? 0.5m is a high-quality, single-mode fiber optic patch cable designed for reliable and efficient data transmission.

This patch cable is part of the Good Connections OS2 series, renowned for high performance and durability. It is specifically tailored for single-mode fiber applications, making it ideal for long-distance data transmission. The cable features a Low Smoke Zero Halogen (LSZH) jacket, ensuring safety and compliance with fire regulations in various environments.

Technical Specifications:

• Fiber Type: Single-mode (SM) with a core diameter of 9 microns.
• Fiber Attenuation: Maximum attenuation of 0.3 dB/km at standard operating wavelengths of 1550 nm and 1320 nm.
• Bandwidth: Supports a bandwidth of 500 MHz km at 1310 nm.
• Distance Capability: Transmits data over distances of up to 40 kilometers at a speed of up to 10 Gbps.
• Connectors: LC and SC connectors for versatility.
• Material: Constructed with LSZH material to reduce smoke and toxic emissions.
• Color: Yellow, facilitating easy identification.

This patch cable is suitable for a variety of applications, including:

• FTTH (Fiber To The Home)
• FTTB (Fiber To The Building)
• FTTO (Fiber To The Office)
• Data Centers
• NAS, Gaming PCs, and Media Centers

Each patch cable undergoes rigorous testing and quality control to ensure it meets high standards, ready for use in critical networking applications.
