Model:

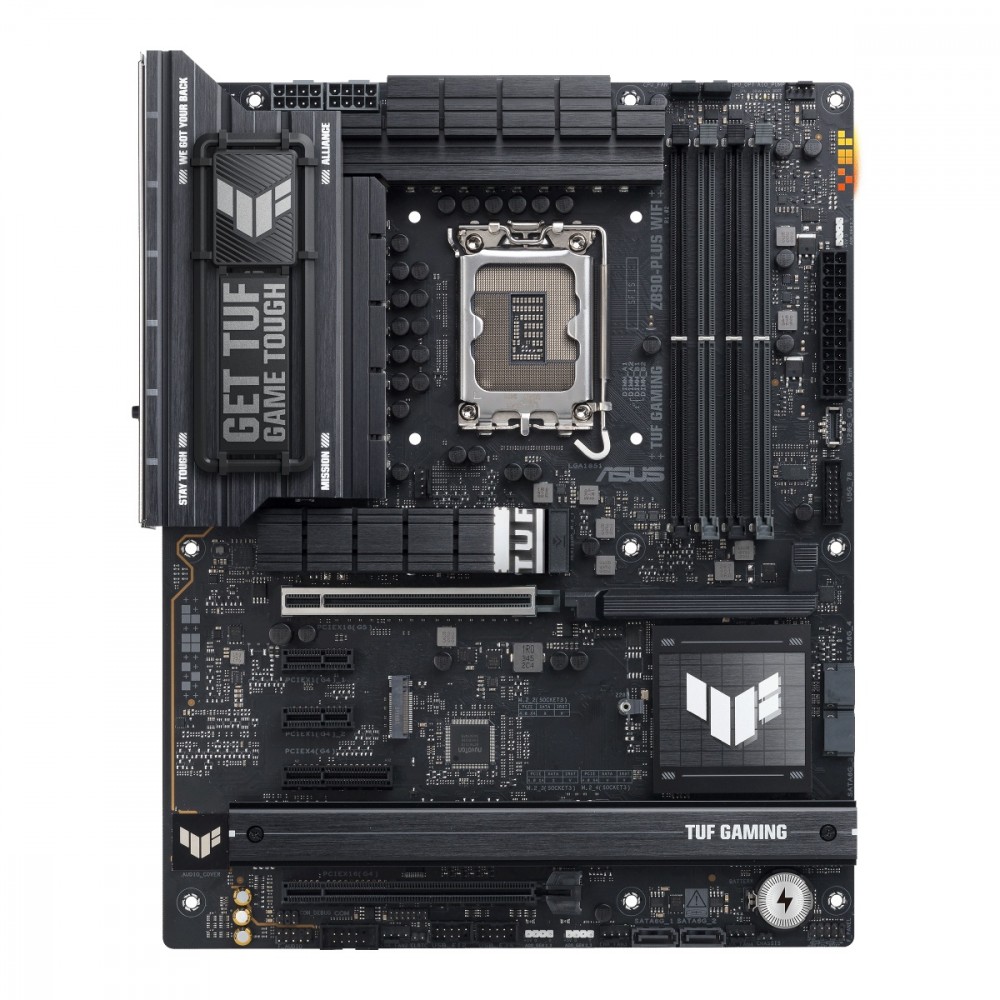

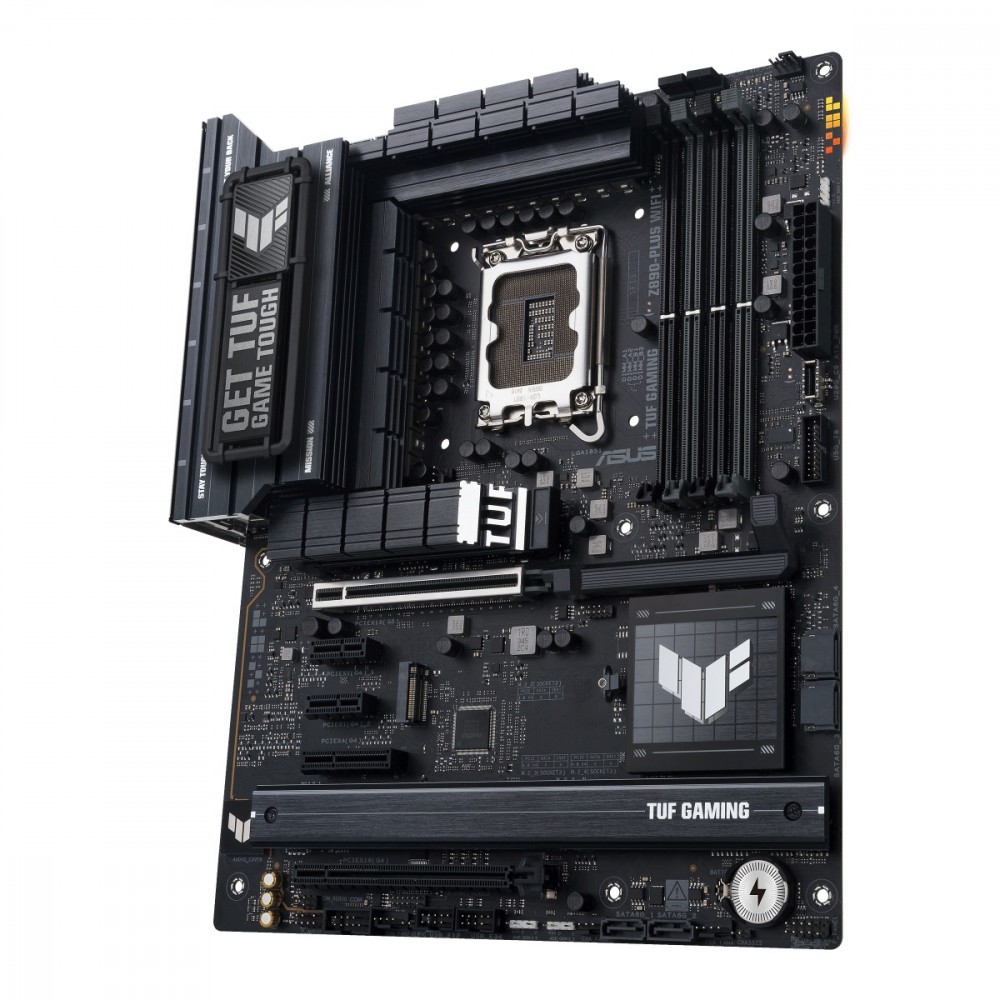

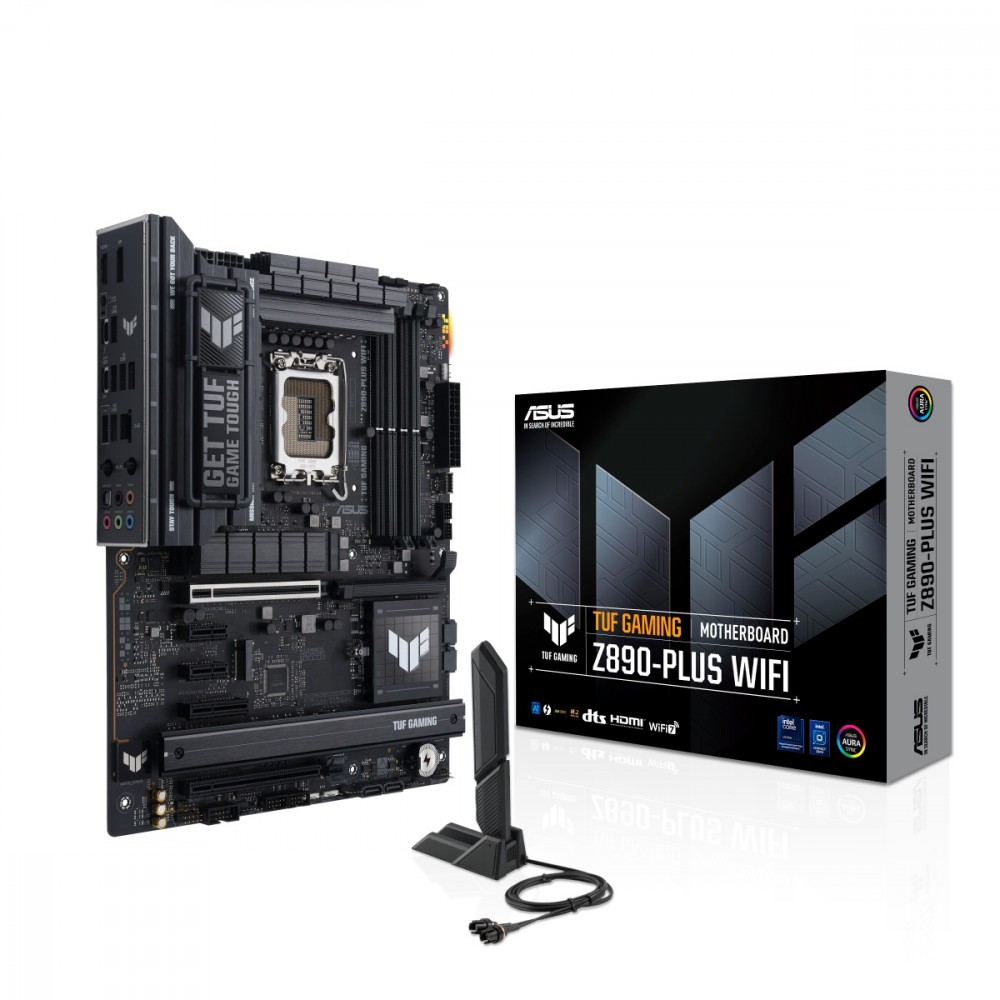

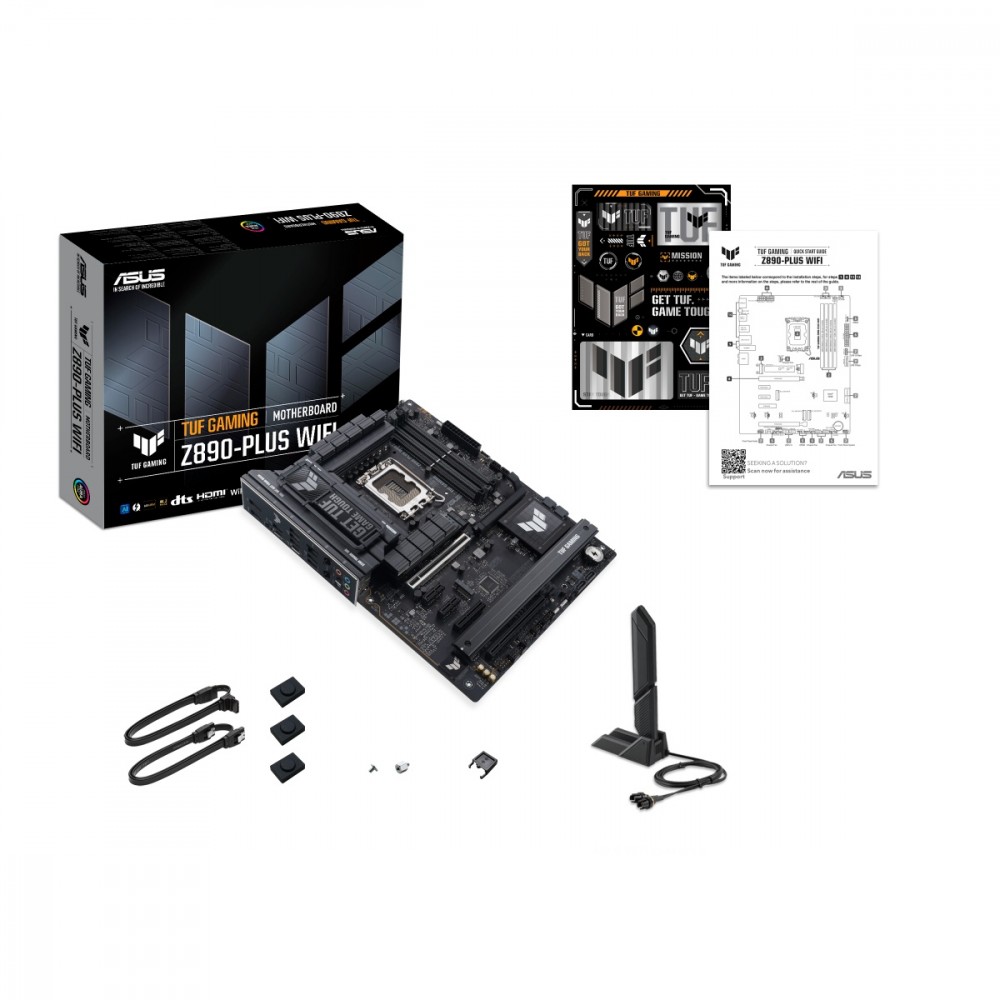

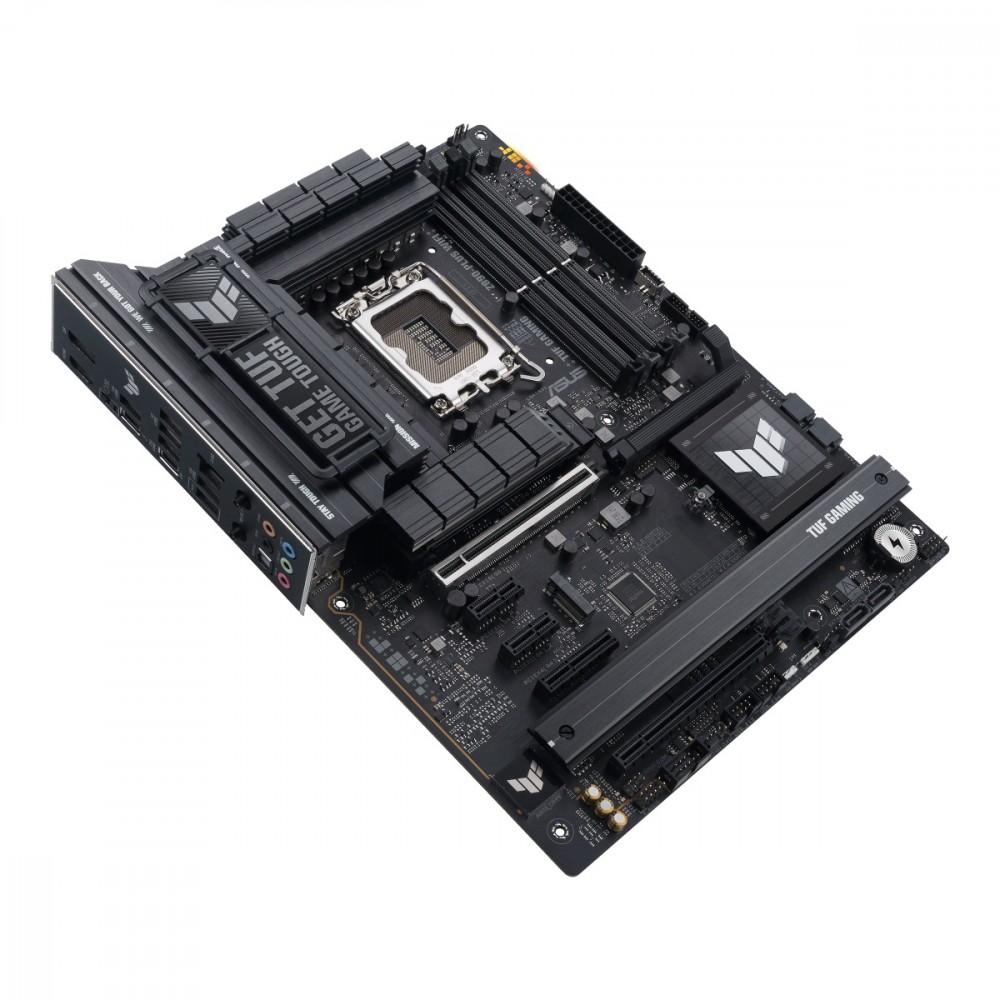

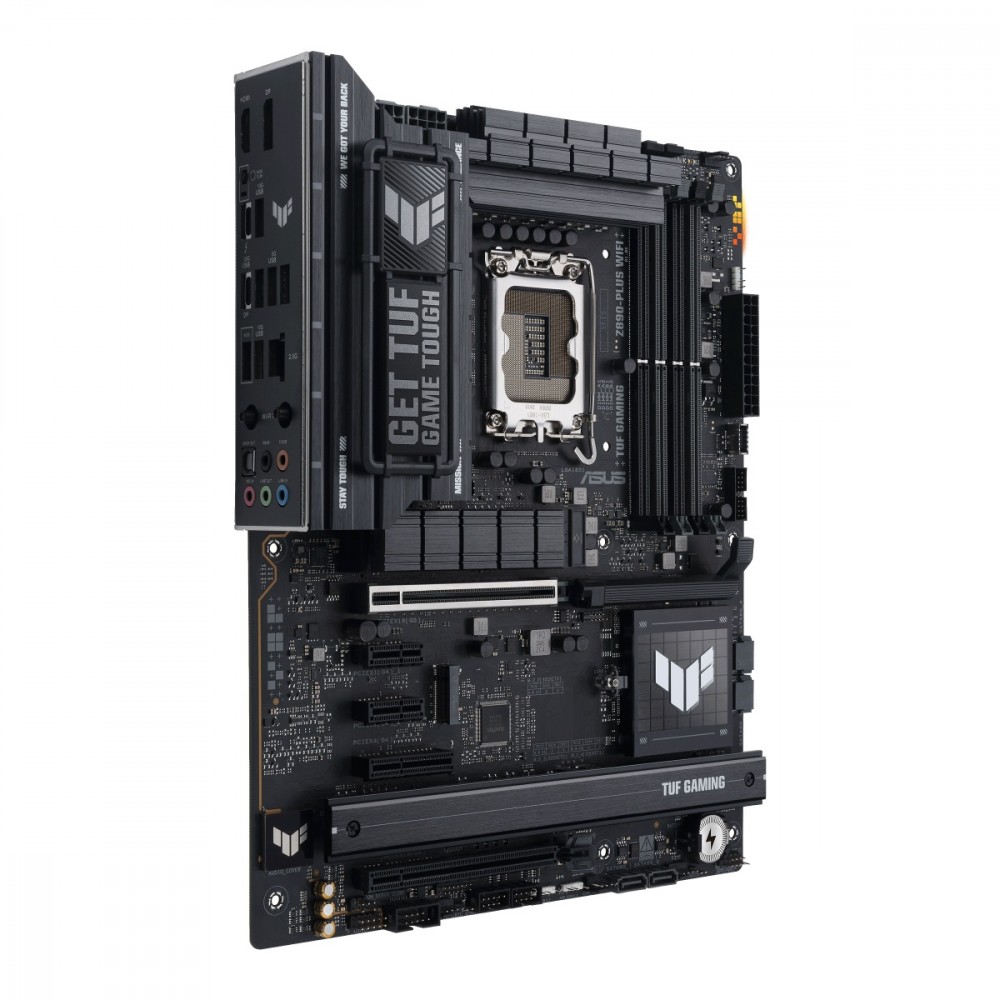

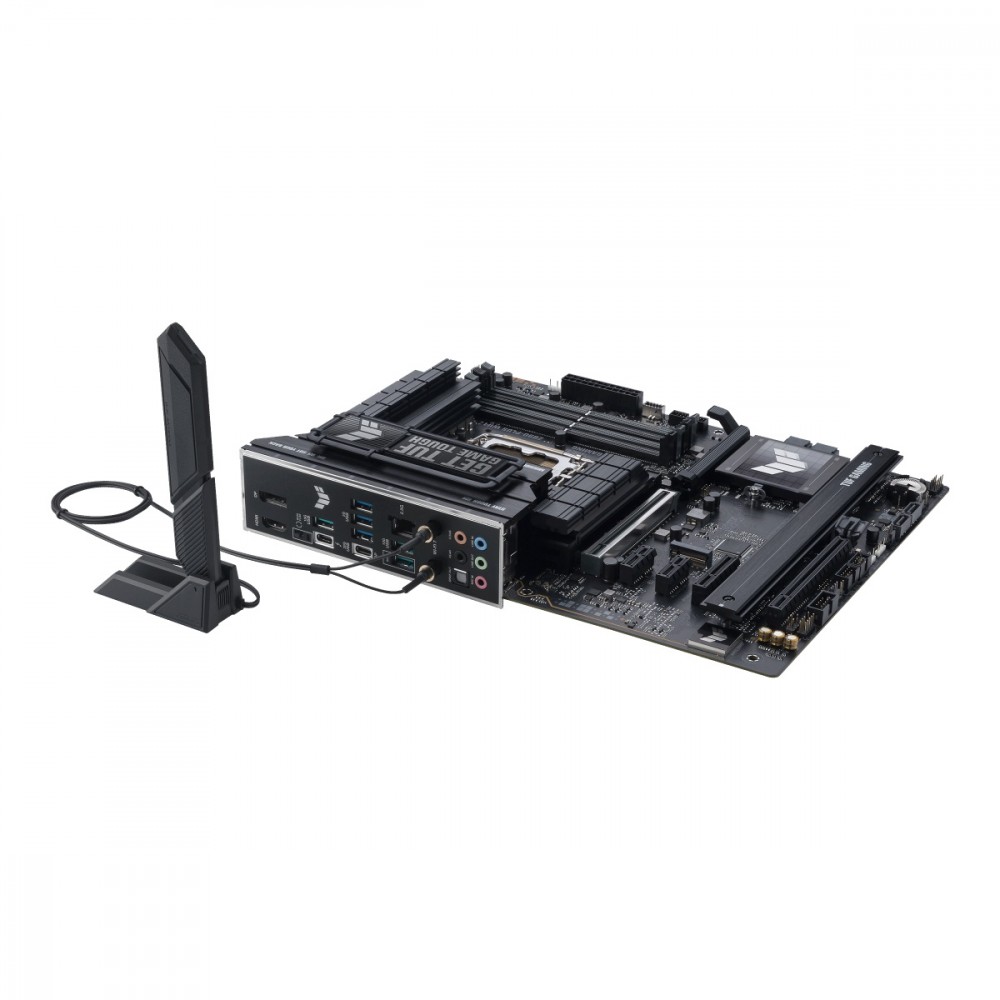

TUF GAMING Z890-PLUS WIFI

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: No

Chipset manufacturer: Intel

Chipset type:

Intel Z890 Chipset

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 8600 MHz

Expansion slots: 4 x M.2

Expansion slots: 2 x PCIe 4.0 x 1

Expansion slots: 1 x PCIe 4.0 x 4

Expansion slots: 1 x PCIe 4.0 x 16

Expansion slots: 1 x PCIe 5.0 x 16

RAID: Yes

Network interface: 1 x 10/100/1000/2500 Mbit/s

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

Network interface: Bluetooth

FireWire (IEEE 1394): No

COM connector / port: Yes

LPT connector / port: No

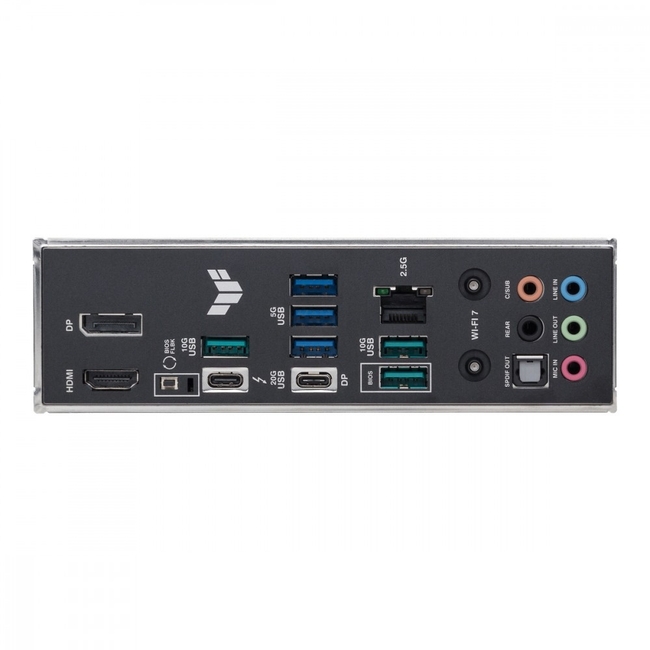

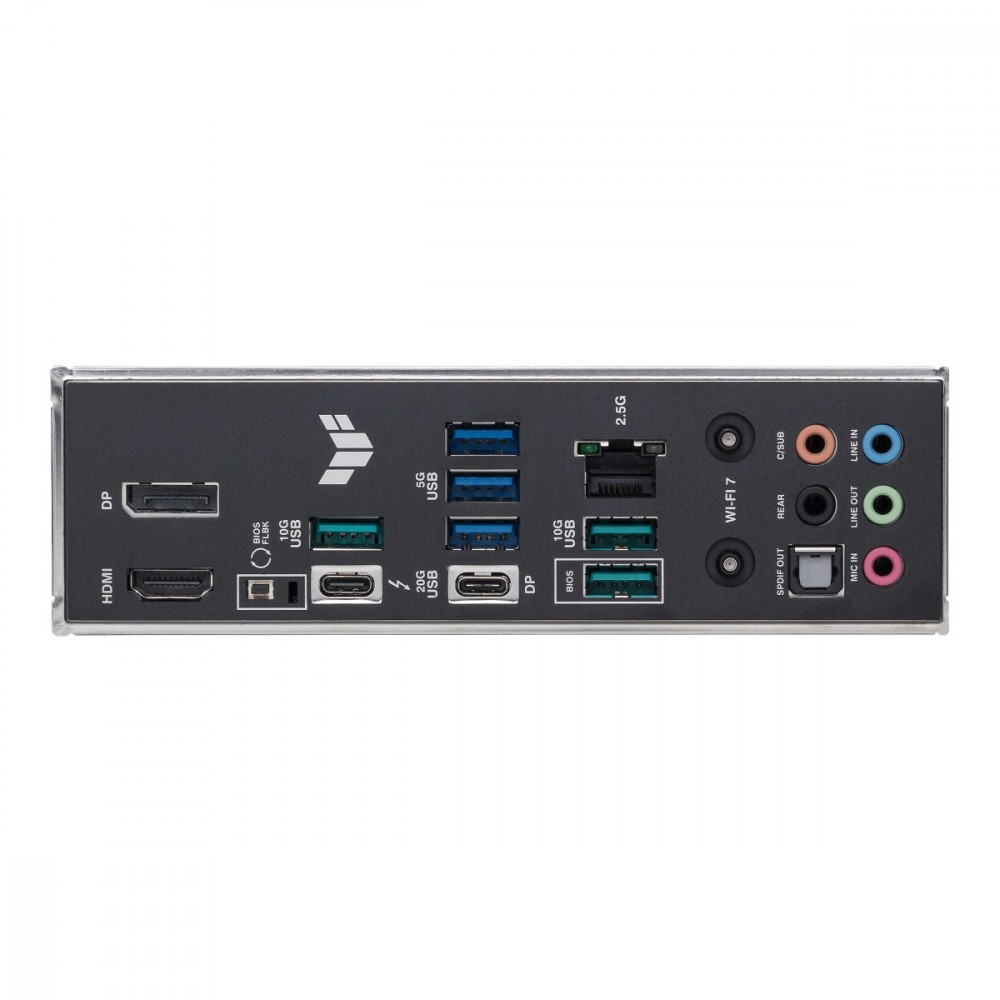

External connectors: 1 x Wi-Fi Module

External connectors: 1 x DisplayPort

External connectors: 1 x HDMI

External connectors: 1 x Central Speaker / Subwoofer

External connectors: 1 x Rear Speaker

External connectors: 1 x Line In

External connectors: 1 x Line Out

External connectors: 1 x MIC

External connectors: 1 x RJ-45

External connectors: 1 x S/PDIF

External connectors: 3 x USB 3.0

External connectors: 3 x USB 3.1

External connectors: 1 x USB BIOS Flashback button

External connectors: 1 x Thunderbolt 4

External connectors: 1 x USB4 Type-C

Onboard connectors: 1 x Chassis intrusion header

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 1 x Clear CMOS jumper

Onboard connectors: 4 x SATA III 6Gb/s

Onboard connectors: 2 x USB 2.0/1.1 header

Onboard connectors: 1 x USB 3.0 header

Onboard connectors: 1 x USB C

Onboard connectors: 1 x Serial port header

Onboard connectors: 1 x Thunderbolt header

Onboard connectors: 1 x System panel header

Onboard connectors: 1 x 4pin wentylator OPT CPU

Onboard connectors: 4 x 4pin Chassis fan

Onboard connectors: 1 x 4-pin water-pump-fan

Onboard connectors: 2 x 8pin 12V

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 4 x M.2

Onboard connectors: 1 x 4pin CPU fan

Onboard connectors: 3 x Addressable LED

Form factor: ATX

Supported operating systems: Windows 11
