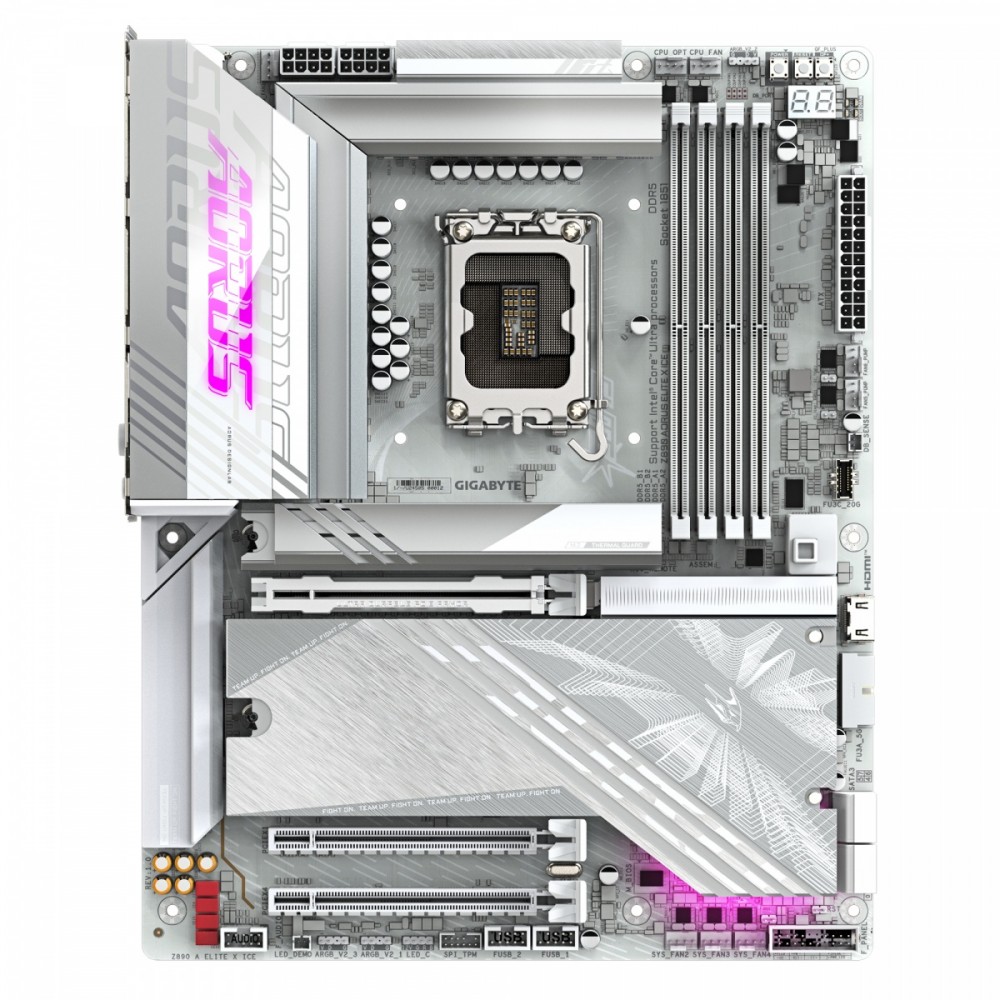

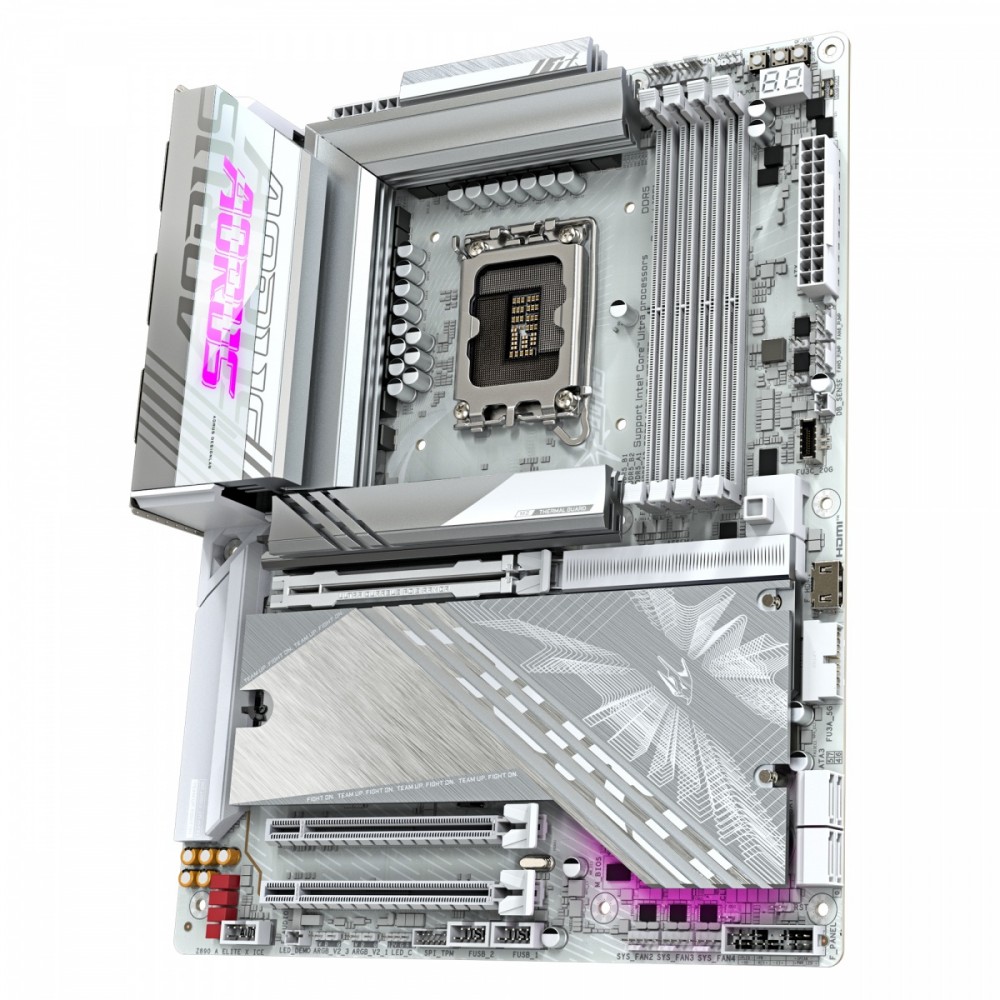

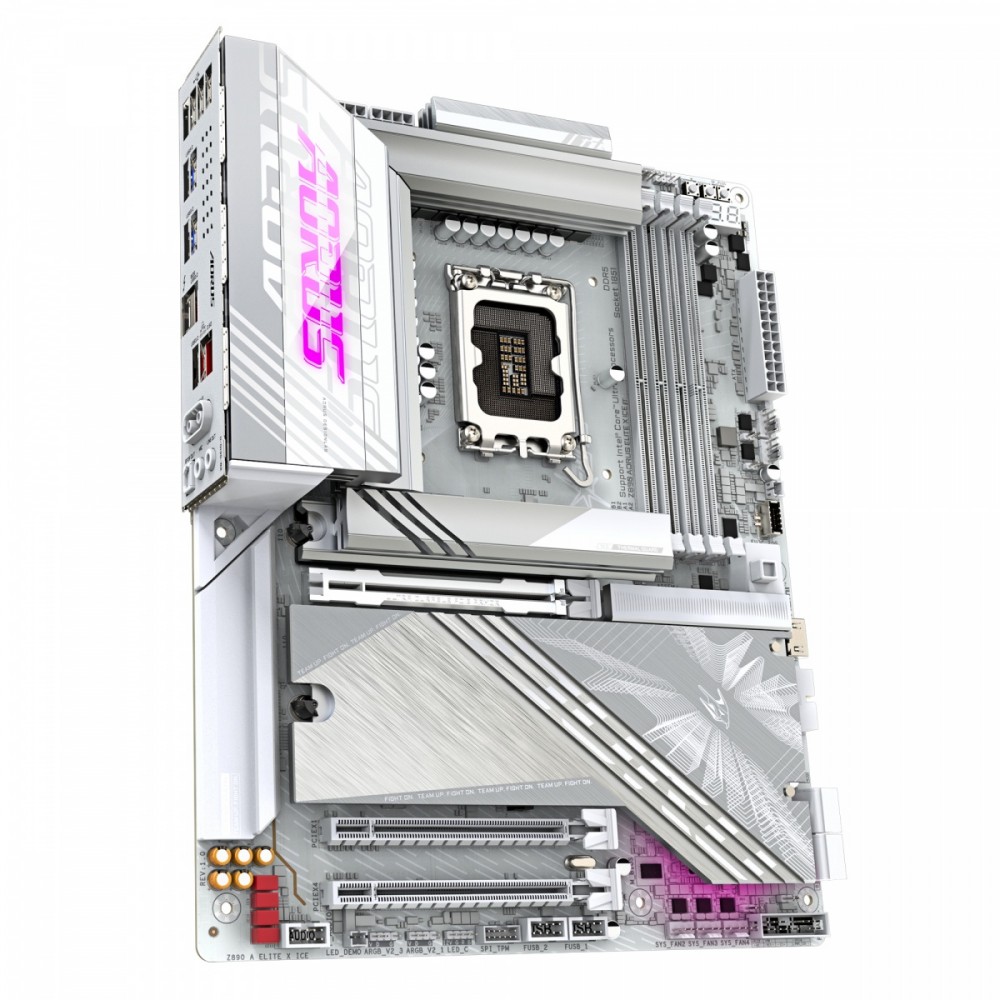

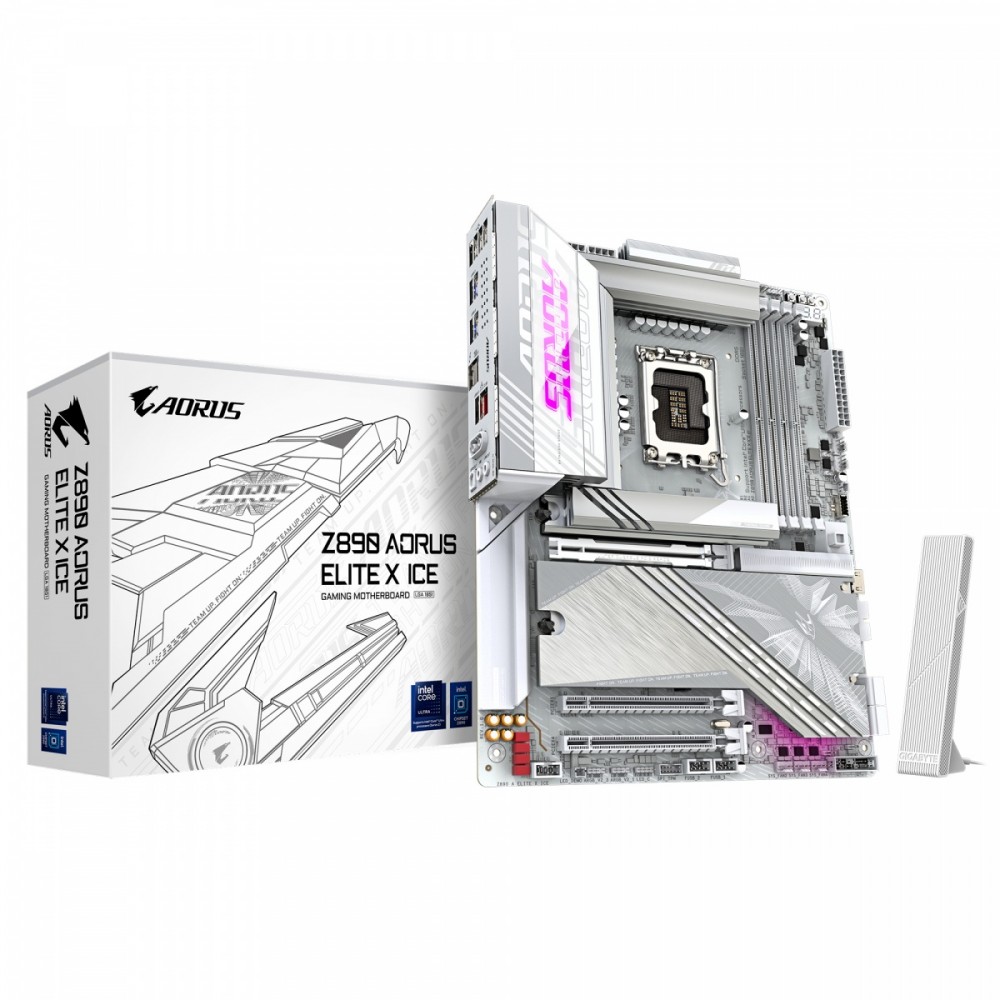

Model:

Z890 A ELITE X ICE

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: Yes

Chipset manufacturer: Intel

Chipset type:

Intel Z890 Express Chipset

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 7200 MHz

Memory bus frequency: 7000 MHz

Memory bus frequency: 5600 MHz

Memory bus frequency: 5800 MHz

Memory bus frequency: 6800 MHz

Memory bus frequency: 9500 MHz

Memory bus frequency: 7400 MHz

Memory bus frequency: 7600 MHz

Memory bus frequency: 7800 MHz

Memory bus frequency: 7900 MHz

Memory bus frequency: 7950 MHz

Memory bus frequency: 8000 MHz

Memory bus frequency: 8200 MHz

Memory bus frequency: 8266 MHz

Memory bus frequency: 8400 MHz

Memory bus frequency: 8600 MHz

Memory bus frequency: 8800 MHz

Memory bus frequency: 8933 MHz

Memory bus frequency: 9066 MHz

Memory bus frequency: 9200 MHz

Memory bus frequency: 9333 MHz

Memory bus frequency: 9466 MHz

Memory bus frequency: 6200 MHz

Memory bus frequency: 6400 MHz

Memory bus frequency: 6600 MHz

Memory bus frequency: 6000 MHz

Expansion slots: 1 x PCIe 4.0 x 1

Expansion slots: 2 x M.2

Expansion slots: 1 x PCIe 4.0 x 4

Expansion slots: 1 x PCIe 5.0 x 16

RAID: Yes

Network interface: Bluetooth

Network interface: 1 x 10/100/1000/2500 Mbit/s

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

FireWire (IEEE 1394): No

COM connector / port: No

LPT connector / port: No

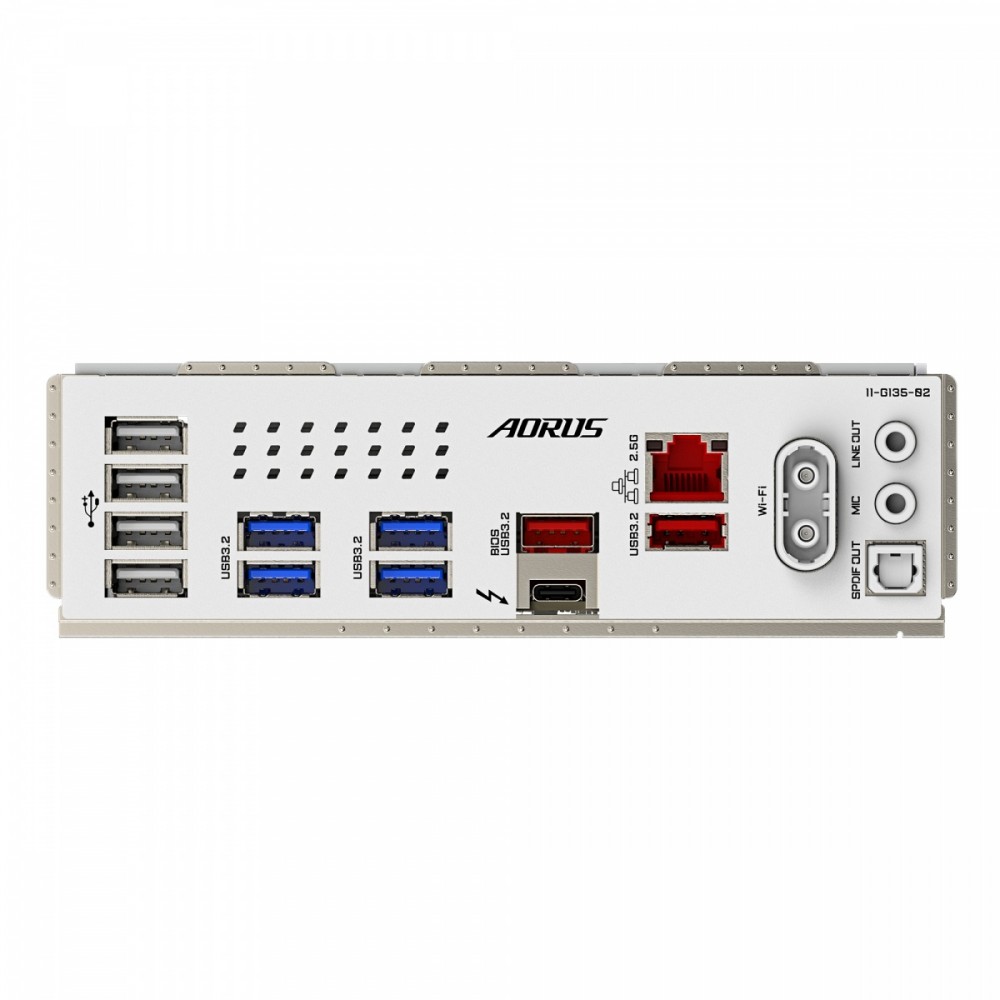

External connectors: 2 x SMA

External connectors: 1 x Thunderbolt 4

External connectors: 4 x USB 3.2 Gen 1 Type-A

External connectors: 1 x Line Out

External connectors: 1 x MIC

External connectors: 1 x RJ-45

External connectors: 1 x S/PDIF

External connectors: 4 x USB 2.0

External connectors: 2 x USB 3.2 Gen 2 Type-A

Onboard connectors: 3 x Addressable LED

Onboard connectors: 1 x Clear CMOS jumper

Onboard connectors: 1 x Reset jumper

Onboard connectors: 1 x Noise detection header

Onboard connectors: 1 x Q-Flash Plus button

Onboard connectors: 1 x RGB LED strip header

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 5 x M.2

Onboard connectors: 4 x SATA III 6Gb/s

Onboard connectors: 2 x USB 2.0/1.1 header

Onboard connectors: 1 x USB 3.2 Gen 1 Type-A

Onboard connectors: 1 x USB C

Onboard connectors: 1 x HDMI

Onboard connectors: 1 x TPM header

Onboard connectors: 1 x System panel header

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 1 x 4pin CPU fan

Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector

Onboard connectors: 4 x 4pin Chassis fan

Onboard connectors: 2 x 4pin case fan liquid cooling

Onboard connectors: 2 x 8pin 12V

Onboard connectors: 1 x Reset button

Onboard connectors: 1 x Power button

Form factor: ATX

Supported operating systems: Windows 11
