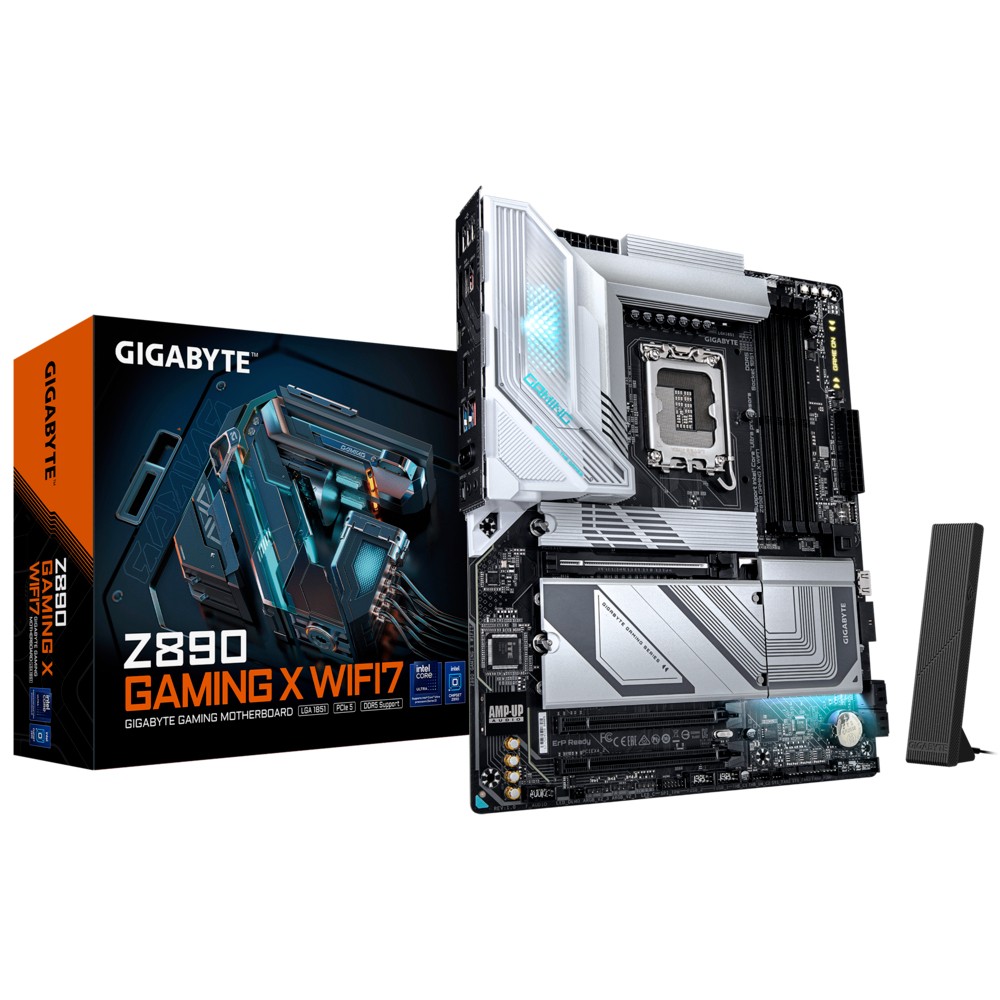

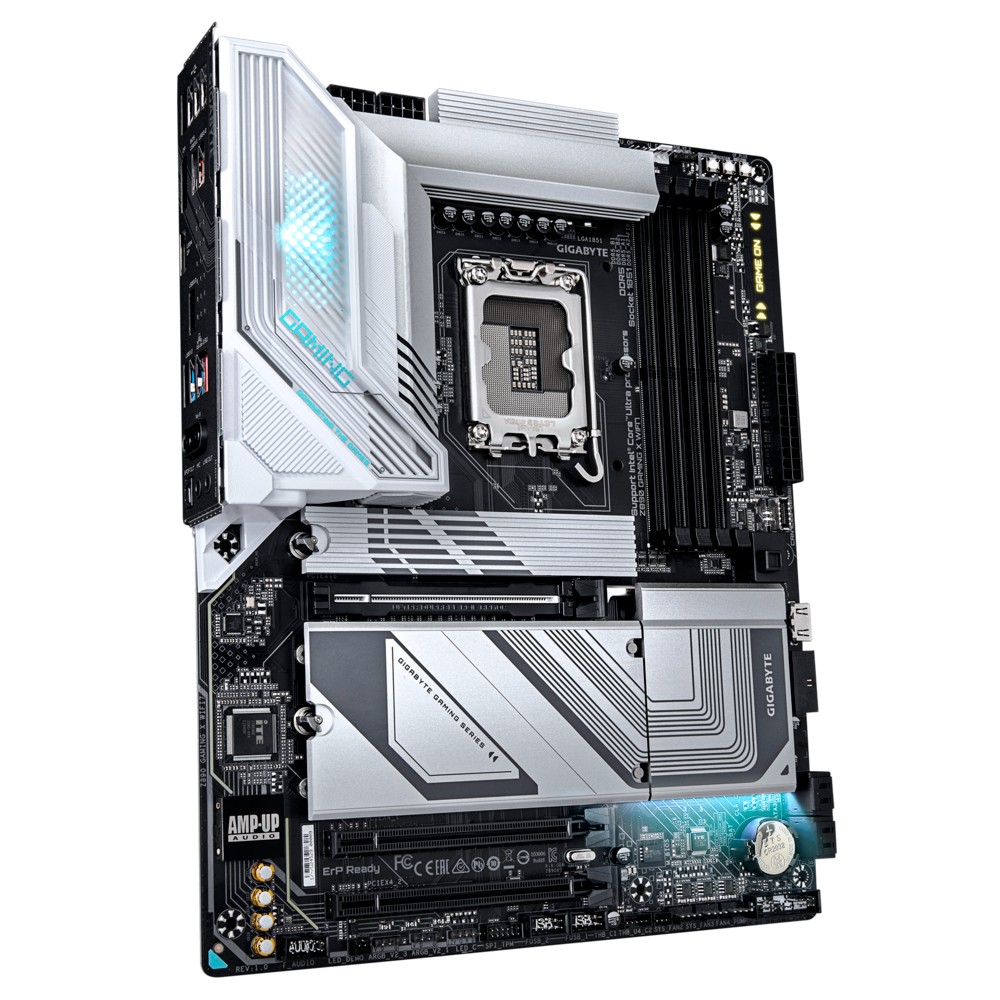

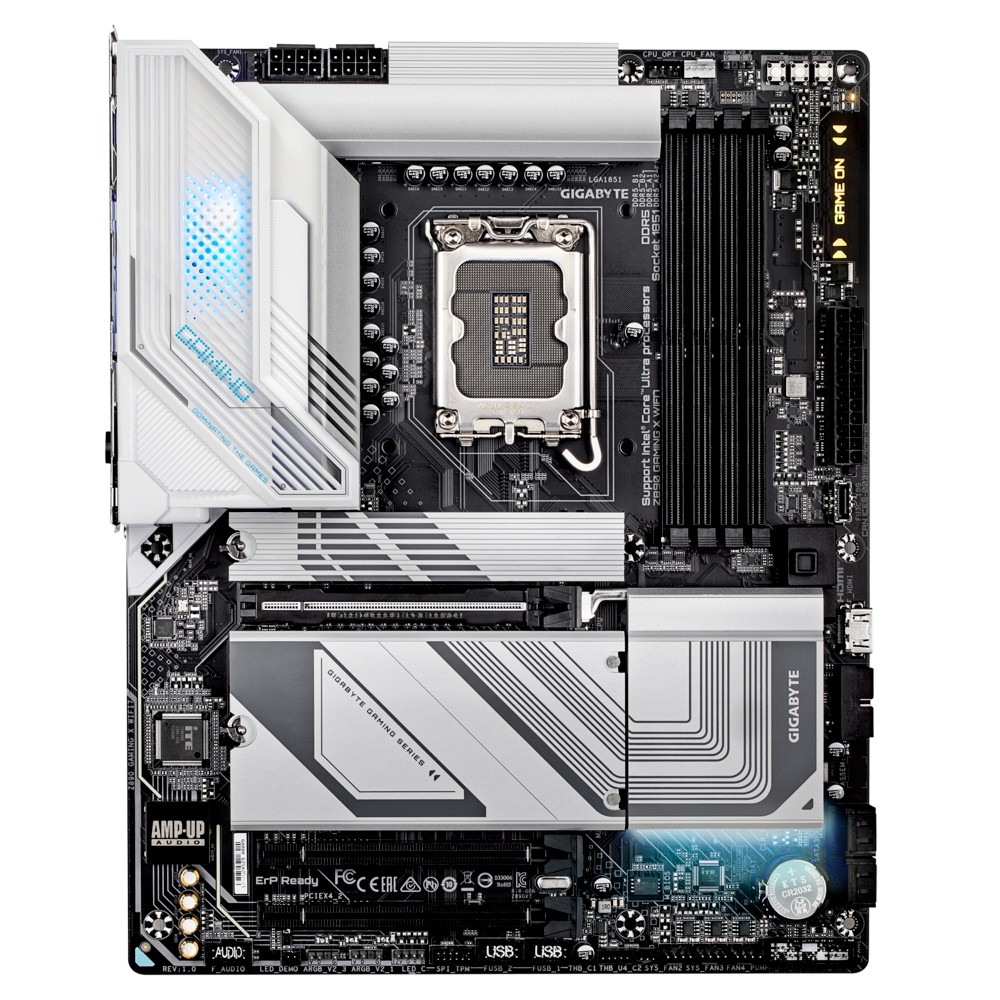

Z890 GAMING X WIFI7

• Supports Intel Core Ultra processors (Series 2)
• Digital twin 16+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AORUS AI SNATCH: Auto-Overclocking Software by AI model
• AI PerfDrive: Provides optimal and customized BIOS preset profile for users
• Premium Compatibility: 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Model:

Z890 GAMING X WIFI7

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: No

Chipset manufacturer: Intel

Chipset type:

Intel Z890 Express

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 8400 MHz

Memory bus frequency: 8000 MHz

Memory bus frequency: 8200 MHz

Memory bus frequency: 8266 MHz

Memory bus frequency: 8600 MHz

Memory bus frequency: 8800 MHz

Memory bus frequency: 7950 MHz

Memory bus frequency: 7900 MHz

Memory bus frequency: 7800 MHz

Memory bus frequency: 7400 MHz

Memory bus frequency: 7600 MHz

Memory bus frequency: 7200 MHz

Memory bus frequency: 7000 MHz

Memory bus frequency: 6800 MHz

Memory bus frequency: 6600 MHz

Memory bus frequency: 6400 MHz

Memory bus frequency: 6200 MHz

Memory bus frequency: 6000 MHz

Memory bus frequency: 5800 MHz

Memory bus frequency: 5600 MHz

Expansion slots: 2 x PCIe 4.0 x 16

Expansion slots: 1 x PCIe 5.0 x 16

RAID: Yes

Network interface: 1 x 10/100/1000/2500 Mbit/s

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

Network interface: Bluetooth

FireWire (IEEE 1394): No

COM connector / port: No

LPT connector / port: No

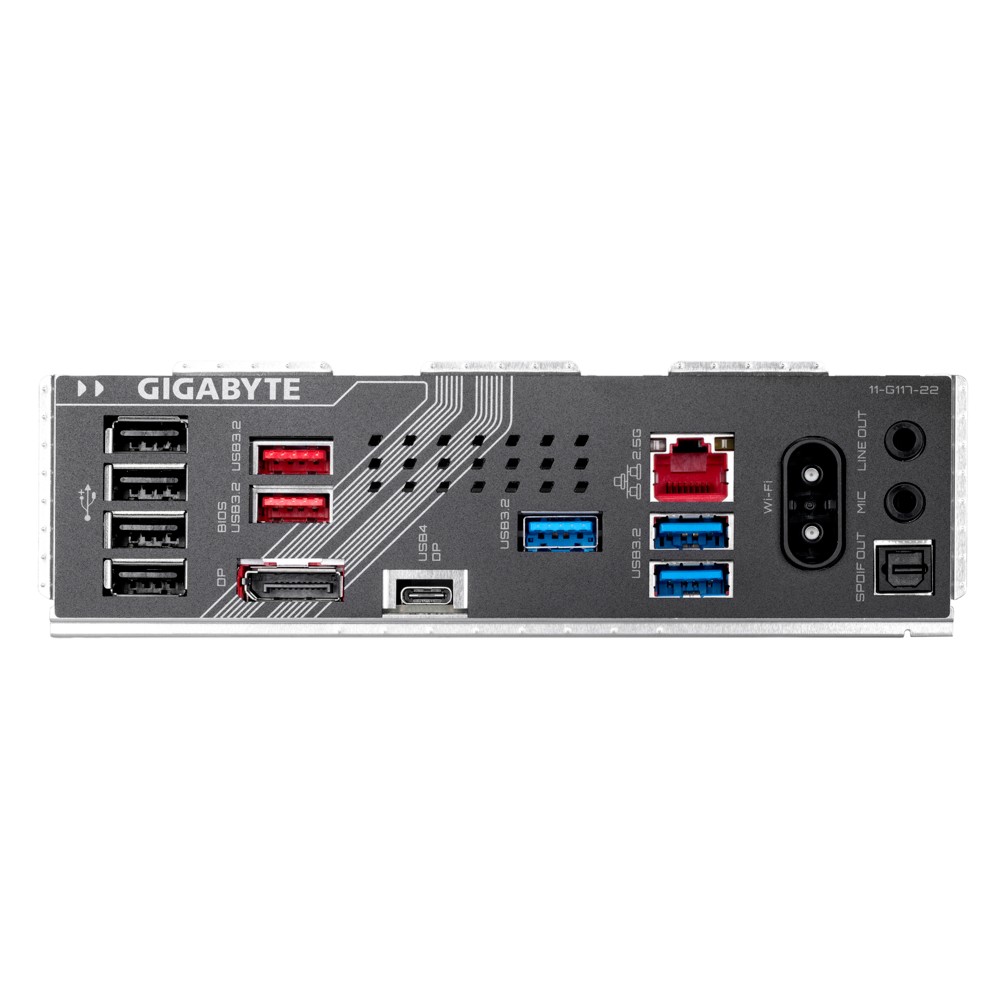

External connectors: 3 x USB 3.2 Gen 1 Type-A

External connectors: 1 x USB4 Type-C

External connectors: 2 x SMA

External connectors: 1 x S/PDIF

External connectors: 1 x DisplayPort

External connectors: 1 x Line Out

External connectors: 1 x MIC

External connectors: 1 x RJ-45

External connectors: 4 x USB 2.0

External connectors: 2 x USB 3.2 Gen 2 Type-A

Onboard connectors: 1 x Power button

Onboard connectors: 3 x Addressable LED

Onboard connectors: 1 x TPM header

Onboard connectors: 1 x System panel header

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 1 x Clear CMOS jumper

Onboard connectors: 1 x Reset jumper

Onboard connectors: 1 x Q-Flash Plus button

Onboard connectors: 1 x RGB LED strip header

Onboard connectors: 1 x 4pin CPU fan

Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector

Onboard connectors: 3 x 4pin Chassis fan

Onboard connectors: 1 x 4-pin water-pump-fan

Onboard connectors: 1 x Reset button

Onboard connectors: 4 x SATA III 6Gb/s

Onboard connectors: 4 x USB 2.0/1.1

Onboard connectors: 2 x USB 3.2 Gen 1 Type-A

Onboard connectors: 1 x USB 3.2 Gen 2 Type-C

Onboard connectors: 1 x HDMI

Onboard connectors: 2 x Thunderbolt

Onboard connectors: 2 x 8pin 12V

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 4 x M.2

Form factor: ATX

Dimensions:

30.5 x 24.4 cm

Supported operating systems: Windows 11
