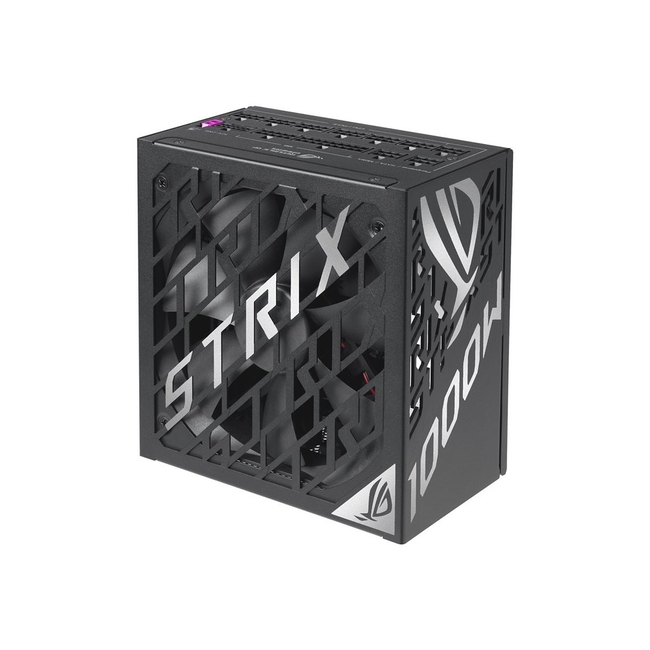

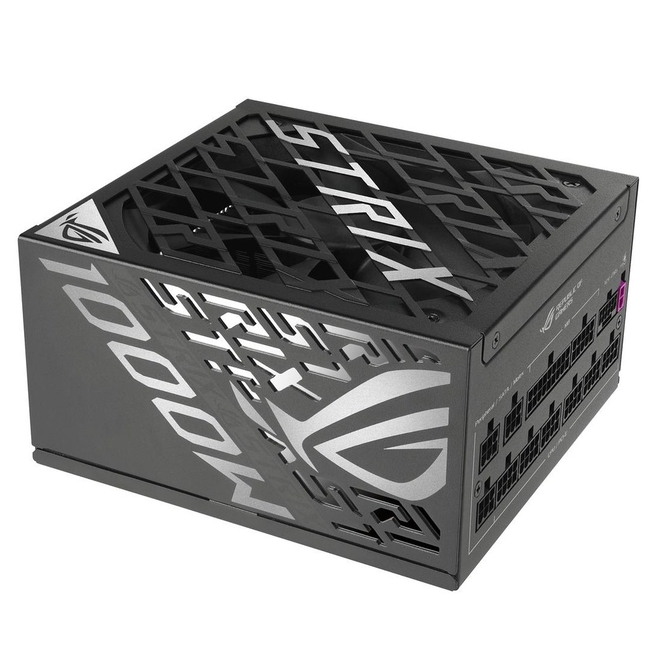

The Asus ROG-STRIX 1000W Platinum is a high-performance gaming power supply unit (PSU) designed to meet the demanding needs of modern gaming systems. This unit is part of ASUS's Republic of Gamers (ROG) series, ensuring a high quality and reliable experience. With its sleek design and durability, it provides both aesthetics and functionality.

One of the key features of the ROG-STRIX 1000W Platinum is its efficiency. It is 80Plus Platinum certified, which guarantees a minimum efficiency of 92% at 230V. This power supply delivers a total output of 1000W, with specific maximum loads for different voltages:

• +3.3V: 25A
• +5V: 25A
• +12V: 83.3A
• -12V: 0.3A
• +5VSB: 3A

Moreover, the PSU is equipped with comprehensive protection features to ensure safety and reliability:

• Over Power Protection (OPP)
• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Short Circuit Protection (SCP)
• Over Current Protection (OCP)
• Over Temperature Protection (OTP)

In terms of connectivity, the Asus ROG-STRIX 1000W Platinum includes multiple connectors:

• 24/20-pin Motherboard connector
• 4+4-pin CPU connector x 2
• 16-pin PCI-E connector x 1
• 6+2-pin PCI-E connectors x 4
• 6 SATA connectors
• 3 Peripheral connectors

This PSU not only boasts modular design but also features a powerful cooling system with a 135mm fan that operates quietly, certified with a noise level of Cybenetics A+ (20-25 dB[A]). Its 0dB Technology shuts off the fan under low load conditions for silent operation.
